Product Details
Place of Origin: China
Brand Name: AIDA
Certification: ISO,CE,EGS
Model Number: XD-5203
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: pallet packing for export
Delivery Time: 5-20 work days as per order volume
Payment Terms: T/T,L/C
Supply Ability: 200 set/month
Model NO.: |
XD-5203 |
Motor: |
Brushless Motor 800W |
Specification: |
2000kg |
HS Code: |
8431209000 |
Type: |
Pallet Truck Handle Kit |
Material: |
Steel |
Load Capacity: |
2T |
Battery: |
Li-on 48V 15Ah |
Cylinder: |
Integrated | Customized Request |
Size: |
400*300*1270 Mm |
Weight: |
42kg |
Model NO.: |
XD-5203 |
Motor: |
Brushless Motor 800W |
Specification: |
2000kg |
HS Code: |
8431209000 |
Type: |
Pallet Truck Handle Kit |
Material: |
Steel |
Load Capacity: |
2T |
Battery: |
Li-on 48V 15Ah |
Cylinder: |
Integrated | Customized Request |
Size: |
400*300*1270 Mm |
Weight: |
42kg |

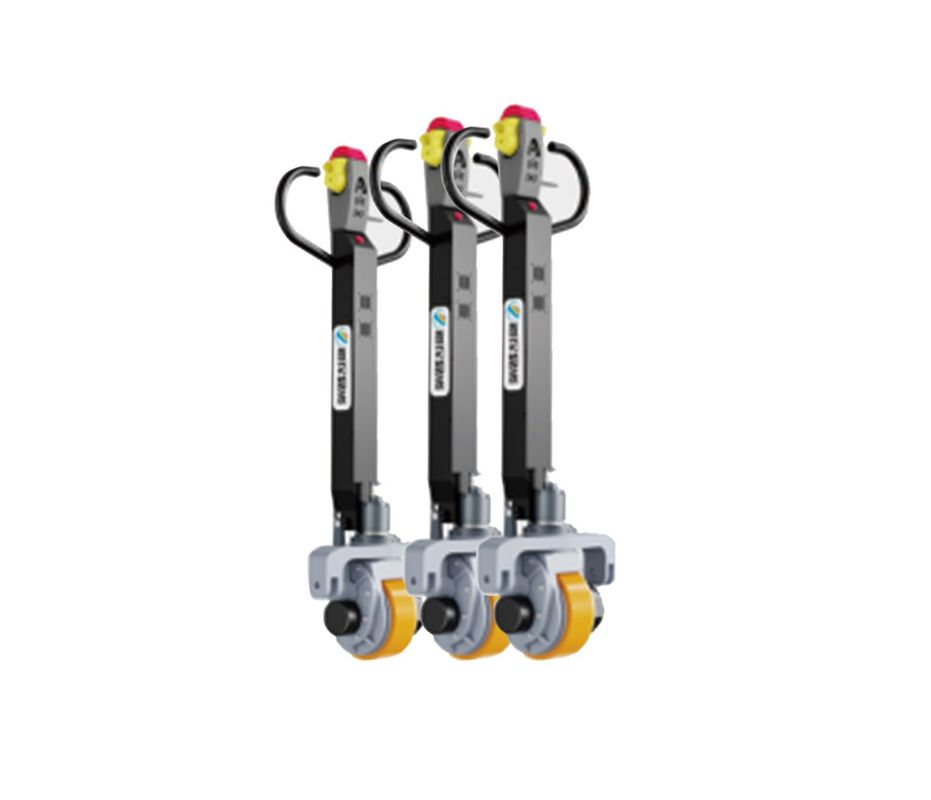

AIDA self-propelled electric handle (XD-5203) is a pallet truck module parts, it is used to retrofit manual pallet truck to electric pallet truck.
it is affordable and eco-friendly way to energize your material transport needs. Turn your manual hand pallet trucks into powered pallet trucks with enhanced performance and handling.
Is manual pallet truck too tiring? Just take it apart , keep original fork frame, retrofit it by AIDA self-propelled electric handle in 5 seconds. Talk to us today to get started with an electrifying upgrade of your manual hand pallet trucks.
Technical Data
| Brand | AIDA | Unit |
| Model | XD-5203 | |
| Power | Electric | |
| Operation way | Walkie | |
| Load capacity | 2000 | kg |
| load centre distance | 600 | mm |
| Self weight | 42 | kg |
| Max.ground clearance | 200 | mm |
| Max.travel speed,loaded/unladen | 4.8/5.2 | km/h |
| Gradeability,loaded/unladen | 3/7 | % |
| Motor | 0.8 | kW |
| Battery | Li-on 48V 15Ah | V/Ah |
(1) Fast modification:circuit integration, easy and fast modification and installation
(2) Low cost: make best use of old manual pallet truck to keep original fork frame
(3) Wide application: no change of original fork frame size and structure,the handle compatible with 90% of existing hand pallet trucks
(4) Compact design: downsized electric pallet truck after retrofitting take up less place
(5) Easy maintenance: handle module easy for maintenance and replacement
(6) Customization available: custom-made connection section is available for modification of a mass of nonstandard hand pallet trucks.
(1) Disassemble the the handle rod from fork frame of the old manual pallet truck, keep the original fork frame
(fork distance both 550mm and 680mm versions are OK)

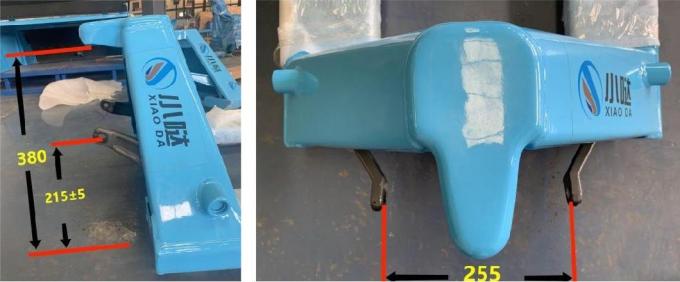

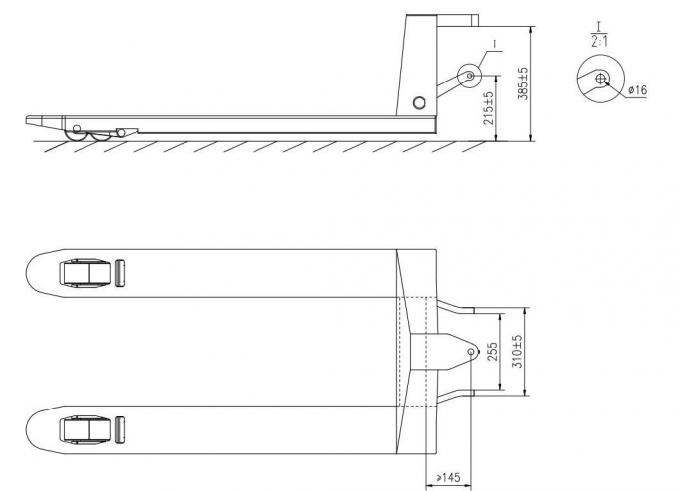

(2) Measure dimensions as below to make sure compatible with the E-handle

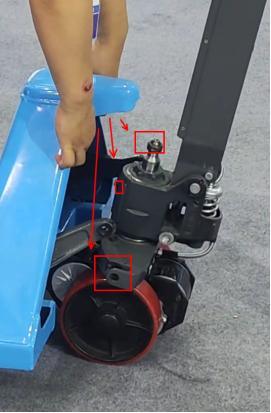

(3) Assemble the the E-handle to the original fork frame
