Product Details
Place of Origin: China
Brand Name: AIDA
Certification: ISO,CE,MSDS,UN38.3
Model Number: XD-5203
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Packaging Details: carton or wooden pallet
Delivery Time: 5-10 working days
Payment Terms: L/C, T/T
Supply Ability: 200set/month
Lift Motor: |
Hydraulic |
Overall Dimension: |
400*300*1250 Mm |
Power: |
Electric Lithium Battery |
Package Size: |
140.00cm * 40.00cm * 36.00cm |
Capacity: |
2000kg |
Moving Way: |
Electric Moving |
Self Weight: |
40kg |
Lift Motor: |
Hydraulic |
Overall Dimension: |
400*300*1250 Mm |
Power: |
Electric Lithium Battery |
Package Size: |
140.00cm * 40.00cm * 36.00cm |
Capacity: |
2000kg |
Moving Way: |
Electric Moving |
Self Weight: |
40kg |
What is it?

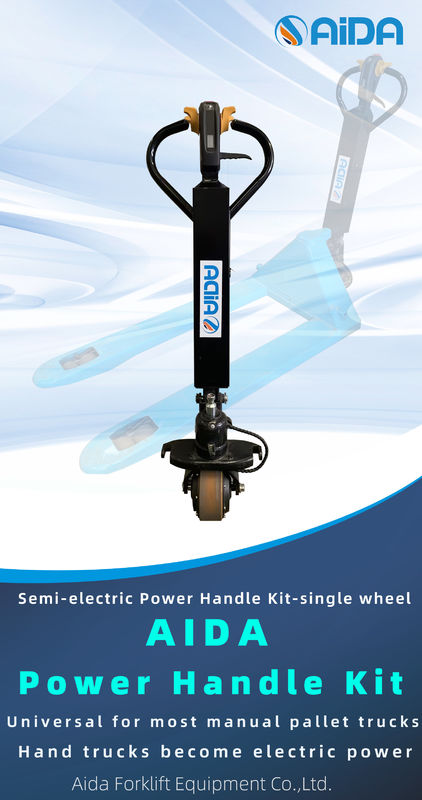

The power handle kit is a module that integrates driving motor, accelerator, controller, cylinder, lithium battery, wheel and harness assembly.
As a self-propelled handle kit.
What is the usage scenario?
It is designed to convert an old manual pallet truck into an electric power pallet trucks within minutes with low cost.
It also can be modified and used as electric tugger to tow wheeled trolley and cargo
Technical Specification
| Brand | AIDA | Unit |
| Model | XD-5203 | |
| Power | Electric | |
| Operation way | Walkie | |
| Load capacity | 2000 | kg |
| load centre distance | 600 | mm |
| Self weight | 42 | kg |
| Max.ground clearance | 200 | mm |
| speed,loaded/unladen | 4.8/5.2 | km/h |
| Gradeability,loaded/unladen | 3/7 | % |
| Motor | 0.8 | kW |
| Battery | Li-on 48V 15Ah | V/Ah |
