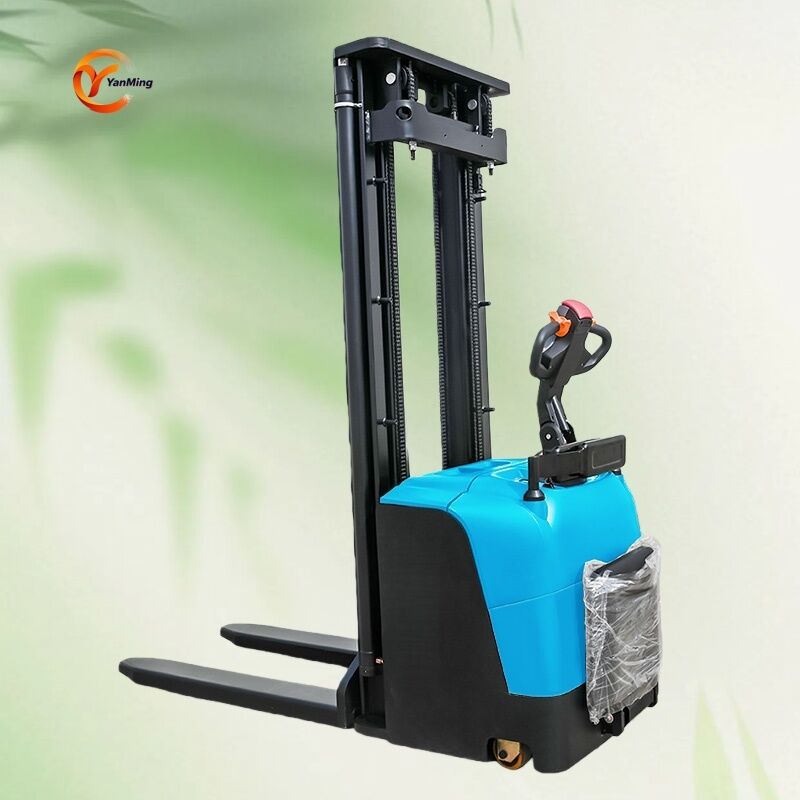

Stand On Walkie Electric Stacker Forklift with 1.5 Ton Capacity and 1600-3500mm Lift Height Powered by AC/DC Drive Motor

Product Details

Place of Origin: China

Brand Name: Yanming

Certification: ISO,CE,EGS

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: pallet packing for export

Delivery Time: 5-20 work days as per order volume

Payment Terms: T/T,L/C

Supply Ability: 200 set/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Stand On Electric Stacker Forklift, Electric Stacker Forklift 1.5 Ton, Electric Walkie Stacker 1.5 Ton


Model NO.:	WDG15QM	Fuel:	Electric
Load Center:	500mm	Lift Height:	1600-3500mm
Condition:	New	Drive Motor:	AC/DC
Lift Motor:	2.2kw	Max Lift Height:	1600/2500/3000/3500mm
Transport Package:	6PCS In One Pallet	Specification:	218079090mm
Trademark:	AIDA	Origin:	China
HS Code:	84279000	Supply Ability:	600 Units/Month
After-sales Service:	Support	Warranty:	1 Year
Cab Location:	Adjustable	Type:	Stacker
Power:	DC Motor	Load Capacity:	1T - 5T
Customization:	Available \| Customized Request	Capacity:	2.5T-3.5T
Control System:	MOSFET/IGBT	Dimensions:	2000mm1200mm2100mm-3000mm1400mm2200mm
Fork Length:	1150mm-2050mm	Fork Width:	100mm-160mm
Lift Height:	3m-6m	Max. Speed:	7km/h-15km/h
Min. Ground Clearance:	50mm-100mm	Operation Mode:	Manual/Semi-automatic/Automatic
Power Source:	Battery	Product Name:	Electric Stacker Forklift
Tire Type:	Solid Tire/Pneumatic Tire	Turning Radius:	1700mm-2200mm
Weight:	1500kg-3000kg

Model NO.:	WDG15QM
Fuel:	Electric
Load Center:	500mm
Lift Height:	1600-3500mm
Condition:	New
Drive Motor:	AC/DC
Lift Motor:	2.2kw
Max Lift Height:	1600/2500/3000/3500mm
Transport Package:	6PCS In One Pallet
Specification:	218079090mm
Trademark:	AIDA
Origin:	China
HS Code:	84279000
Supply Ability:	600 Units/Month
After-sales Service:	Support
Warranty:	1 Year
Cab Location:	Adjustable
Type:	Stacker
Power:	DC Motor
Load Capacity:	1T - 5T
Customization:	Available \| Customized Request
Capacity:	2.5T-3.5T
Control System:	MOSFET/IGBT
Dimensions:	2000mm1200mm2100mm-3000mm1400mm2200mm
Fork Length:	1150mm-2050mm
Fork Width:	100mm-160mm
Lift Height:	3m-6m
Max. Speed:	7km/h-15km/h
Min. Ground Clearance:	50mm-100mm
Operation Mode:	Manual/Semi-automatic/Automatic
Power Source:	Battery
Product Name:	Electric Stacker Forklift
Tire Type:	Solid Tire/Pneumatic Tire
Turning Radius:	1700mm-2200mm
Weight:	1500kg-3000kg

Stand On Walkie Electric Stacker Forklift with 1.5 Ton Capacity and 1600-3500mm Lift Height Powered by AC/DC Drive Motor

Stand On Walkie Electric Stacker Forklift - 1.5 Ton Capacity Horizontal Electric Straddle Stacker

Empower Your Workflow with AIDA's Electric Pallet Stackers

Our electric pallet stackers are reliable partners for workplace productivity. The emergency brake switch provides instant, secure stops when needed. The ingeniously compact frame packs robust performance for maneuvering tight spaces gracefully.

Float across rough terrain with ease as the floating drive absorbs shocks, transporting heavy 1.5 ton loads steadily. Durable horizontal drive wheels grant excellent traction and unwavering stability for safe, quality load handling.

Experience the versatile strength you need to streamline workflows with AIDA's electric stackers. Effortlessly lift up to 1500kg while navigating confined aisles and uneven floors.

Technical Specifications

Model	WDG15QM
Load Capacity	1500kg
Tyre Size, Front	φ80×70
Tyre Size, Rear	φ210×70
Lift Height	1600/2500/3000/3500mm
Lowered Height	90mm
Overall Length	1770(foldable)/2180mm
Fork Dimensions	1070×142×60mm
Distance Between Fork Arms	550/660mm
Turning Radius	1470(foldable)/1880mm
Ground Clearance	50mm
Travel Speed	3.5/4.5 km/h
Gradient, Laden/Unladen	4/6%
Drive Motor	0.75kw
Lift Motor	2.2kw
Battery	Lead-acid 24V75Ah

Product Images

Manufacturer Information

Yanming is a high-tech enterprise integrating R&D, production and service, as a solution provider of professional material handling equipment and flexible intralogistics system for all scenarios.

We offer products including series of electric pallet truck, electric stacker and a series of hand pallet truck, semi electric stacker and reach stacker and other material handling equipment. Widely used in logistics and warehousing, retail and wholesale, medicine, food, chemical, electronics, machinery, automobile and other industries.

Yanming have established a strict quality assurance system and have passed ISO9001, ISO14001, SGS, and CE certification. It is a national high-tech enterprise with more than 40 national patents, which has been rated as "Small giant enterprise in Hunan Province", "The first batch of pilot enterprises for the integration of advanced manufacturing and modern service industries in Hunan Province", "Demonstration enterprise of intelligent manufacturing in Changsha City", "Hunan Enterprise Technology Center".

"Energy saving, environmental protection, high efficiency and intelligence" is the design concept of Yanming products, and it is committed to becoming a smart digital expert for intralogistics.

Frequently Asked Questions

Q1: Are you a factory or a trading company?

A: We are a factory. We are the professional manufacturer of material handling equipment.

Q2: What products do you mainly do?

A: We specialize in producing all kinds of material handling vehicle, such as hand/semi electric/electric pallet truck, manual/electric/semi electric stacker, electric forklift.

Q3: Are the pallet trucks covered by a warranty?

A: Yes. All our products carry a full 1-year major parts warranty.

Q4: What is your payment term?

A: T/T or L/C, if you want any other way, please contact us.

Q5: How about your shipping methods?

A: Transportation depends on the client's choice, usually by sea or rail. You can also choose other shipping methods and inform us before shipment.

Q6: Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery.
