Product Details
Place of Origin: China
Brand Name: AIDA
Certification: ISO,CE,EGS
Model Number: ASPS500
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: pallet packing for export
Delivery Time: 5-20 work days as per order volume
Payment Terms: T/T,L/C
Supply Ability: 200 set/month
Model NO.: |
ASPS |
Driven Type: |
Hydraulic |
Running Mode: |
Moving |
Feature: |
Insulating |
Net Weight: |
64 |
Foot Pedal Cycles To Max Height: |
<=30 |
Total Height: |
920 |
Tyre Size: |
100 |
Carton Size: |
860*485*300 |
Min.Height Of Table: |
302mm |
Table Size: |
700*450*35mm |
Lifting Height: |
798mm |
Max.Lift Height: |
1100mm |
Load Capacity: |
150/300/500/800kg |
Transport Package: |
6PCS In One Pallet |
Specification: |
64kg |
Trademark: |
AIDA |
HS Code: |
84279000 |
Origin: |
China |
Supply Ability: |
500 Units/Month |
Warranty: |
Support |
After-sales Service: |
Support |
Application: |
Workshop Crane, Warehouse Crane |
Lift Mechanism: |
Scissor Lift |
Carrying Capacity: |
Middle-Level |
Moves: |
Moving |
Customization: |
Available | Customized Request |
Model NO.: |
ASPS |
Driven Type: |
Hydraulic |
Running Mode: |
Moving |
Feature: |
Insulating |
Net Weight: |
64 |
Foot Pedal Cycles To Max Height: |
<=30 |
Total Height: |
920 |
Tyre Size: |
100 |
Carton Size: |
860*485*300 |
Min.Height Of Table: |
302mm |
Table Size: |
700*450*35mm |
Lifting Height: |
798mm |
Max.Lift Height: |
1100mm |
Load Capacity: |
150/300/500/800kg |
Transport Package: |
6PCS In One Pallet |
Specification: |
64kg |
Trademark: |
AIDA |
HS Code: |
84279000 |
Origin: |
China |
Supply Ability: |
500 Units/Month |
Warranty: |
Support |
After-sales Service: |
Support |
Application: |
Workshop Crane, Warehouse Crane |
Lift Mechanism: |
Scissor Lift |
Carrying Capacity: |
Middle-Level |
Moves: |
Moving |
Customization: |
Available | Customized Request |

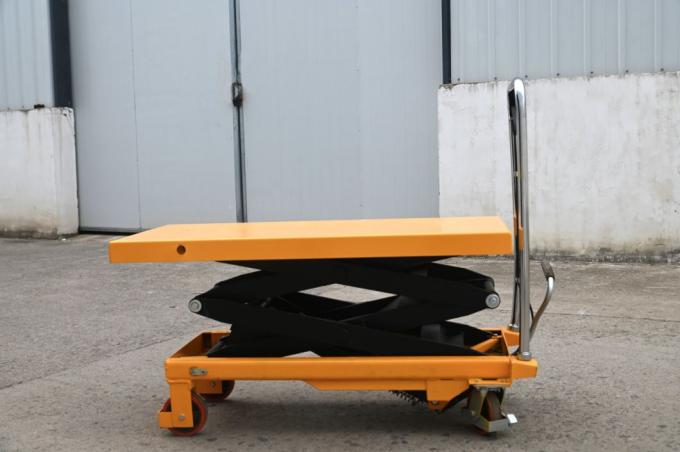

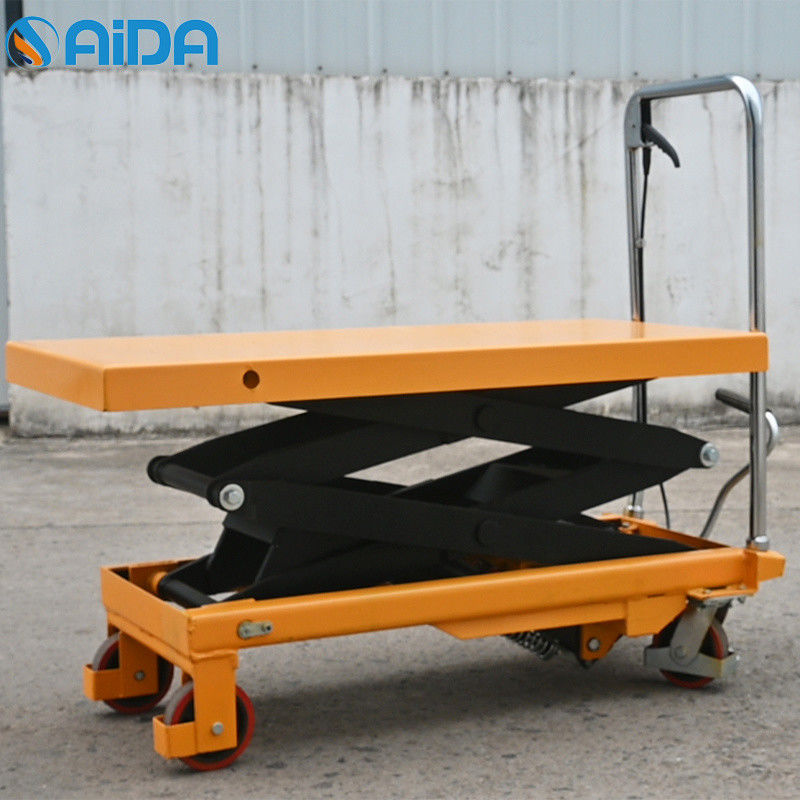

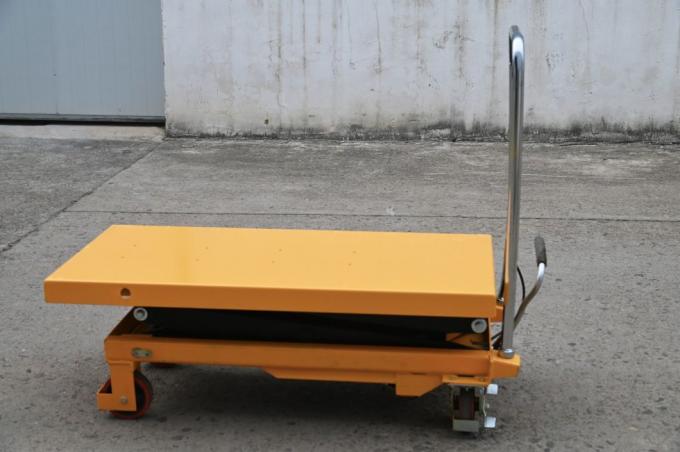

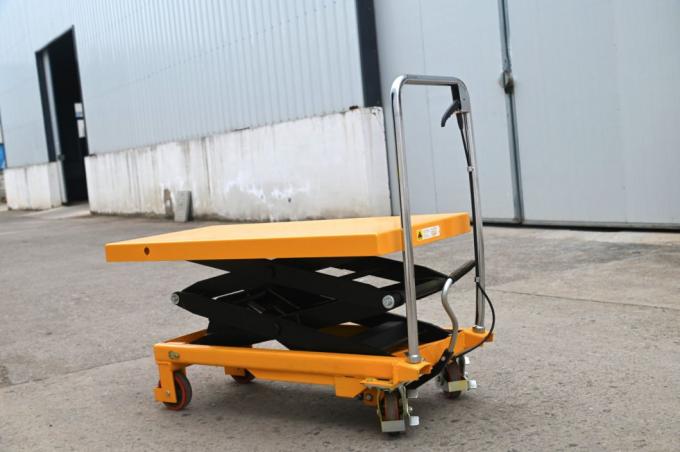

Lifting Equipment Hydraulic Lift Table for Work Platform 800kg
1) With overload protection function;
2) Reliable hydraulic performance ensures long service life;
3) The ascending and descending control device is easy to operate without turning the fixed handle;
4) The interval between the moving parts meets the CE requirements to prevent fingers from being pinched and ensure safety;
5) The rear wheel is equipped with a wheel guard bracket and a brake, which can stop the wheel rotation in an emergency.
| Model | ASPS150 | ASPS350 | ASPS500 | ASPS800 | |
| Load capacity | kg | 150 | 350 | 500 | 800 |
| Max.lift height | mm | 1100 | 1300 | 1550 | 1500 |
| Min.height of table | mm | 302 | 350 | 410 | 475 |
| Lifting height | mm | 798 | 950 | 1025 | 1025 |
| Table size | mm | 700*450*35 | 910*500*52 | 1010*520*60 | 1220*610*60 |
| Foot pedal cycles to max height | <=30 | <=60 | <=70 | <=70 | |
| Net weight | kg | 64 | 105 | `172 | 172 |
| Carton size | mm | 860*485*300 | 985*519*350 | 1370*645*470 | 1370*645*470 |
| Total height | mm | 920 | 970 | 969 | 961 |
| Tyre size | mm | φ100 | φ127 | φ127 | φ150 |

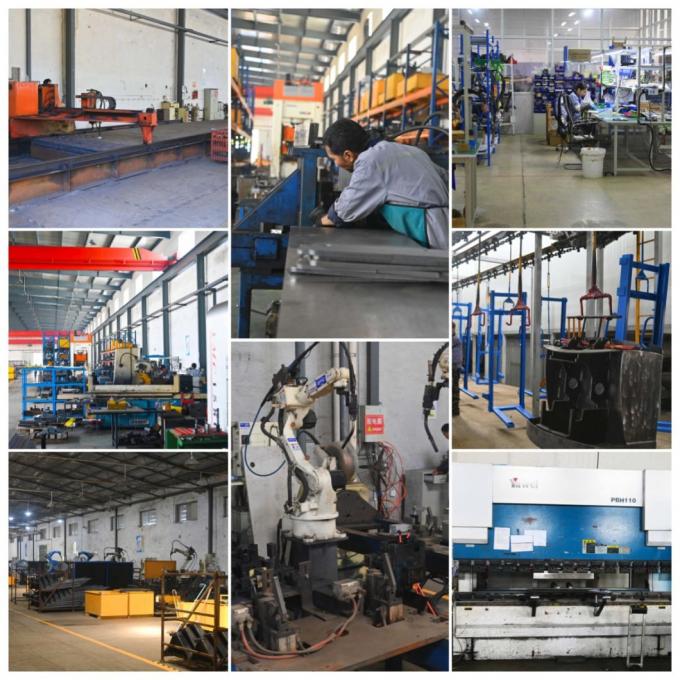

AIDA is an innovative enterprise that seamlessly integrates research and development, production, and service. As a leading provider of professional material handling equipment and flexible intralogistics systems, we cater to various scenarios.
Our extensive product range includes a series of electric pallet trucks, electric stackers, hand pallet trucks, semi-electric stackers, reach stackers, and other material handling equipment. These solutions find wide applications in logistics and warehousing, retail and wholesale, medicine, food, chemical, electronics, machinery, automobile, and other industries.
AIDA has implemented a stringent quality assurance system and obtained prestigious certifications such as ISO9001, ISO14001, SGS, and CE. Recognized as a national high-tech enterprise, we hold over 40 national patents and have earned esteemed titles including "Small Giant Enterprise in Hunan Province," "Pioneer Enterprises for Advanced Manufacturing and Modern Service Integration in Hunan Province," "Demonstration Enterprise of Intelligent Manufacturing in Changsha City," and "Hunan Enterprise Technology Center."
At AIDA, our design philosophy revolves around the principles of "energy saving, environmental protection, high efficiency, and intelligence." We are dedicated to becoming a leading expert in smart digital intralogistics, committed to delivering cutting-edge products that embody these values.
