Product Details
Place of Origin: China
Brand Name: AIDA
Certification: ISO,CE,EGS
Model Number: ASPS800
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: pallet packing for export
Delivery Time: 5-20 work days as per order volume
Payment Terms: T/T,L/C
Supply Ability: 200 set/month
Model NO.: |
ASPS800 |
Driven Type: |
Hydraulic |
Running Mode: |
Moving |
Feature: |
Insulating |
Net Weight: |
64 |
Foot Pedal Cycles To Max Height: |
<=30 |
Total Height: |
920 |
Tyre Size: |
100 |
Carton Size: |
860*485*300 |
Min.Height Of Table: |
302mm |
Table Size: |
700*450*35mm |
Lifting Height: |
798mm |
Max.Lift Height: |
1100mm |
Load Capacity: |
150/300/500/800kg |
Transport Package: |
6PCS In One Pallet |
Specification: |
64kg |
Trademark: |
AIDA |
Origin: |
China |
HS Code: |
84279000 |
Supply Ability: |
500 Units/Month |
After-sales Service: |
Support |
Warranty: |
Support |
Application: |
Workshop Crane, Warehouse Crane |
Lift Mechanism: |
Scissor Lift |
Carrying Capacity: |
Middle-Level |
Moves: |
Moving |
Customization: |
Available | Customized Request |
Model NO.: |
ASPS800 |
Driven Type: |
Hydraulic |
Running Mode: |
Moving |
Feature: |
Insulating |
Net Weight: |
64 |
Foot Pedal Cycles To Max Height: |
<=30 |
Total Height: |
920 |
Tyre Size: |
100 |
Carton Size: |
860*485*300 |
Min.Height Of Table: |
302mm |
Table Size: |
700*450*35mm |
Lifting Height: |
798mm |
Max.Lift Height: |
1100mm |
Load Capacity: |
150/300/500/800kg |
Transport Package: |
6PCS In One Pallet |
Specification: |
64kg |
Trademark: |
AIDA |
Origin: |
China |
HS Code: |
84279000 |
Supply Ability: |
500 Units/Month |
After-sales Service: |
Support |
Warranty: |
Support |
Application: |
Workshop Crane, Warehouse Crane |
Lift Mechanism: |
Scissor Lift |
Carrying Capacity: |
Middle-Level |
Moves: |
Moving |
Customization: |
Available | Customized Request |

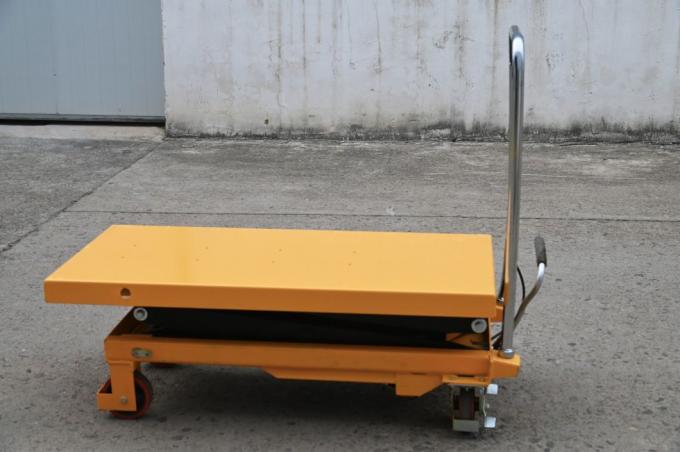

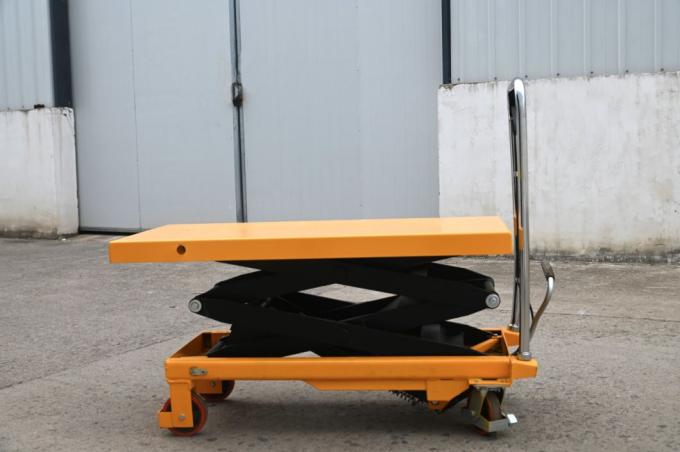

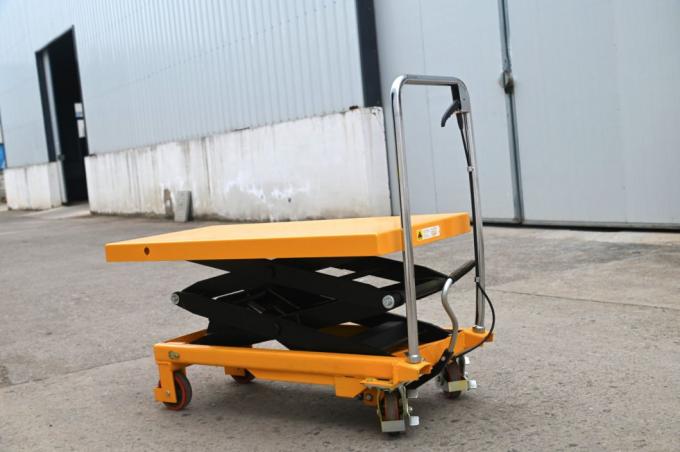

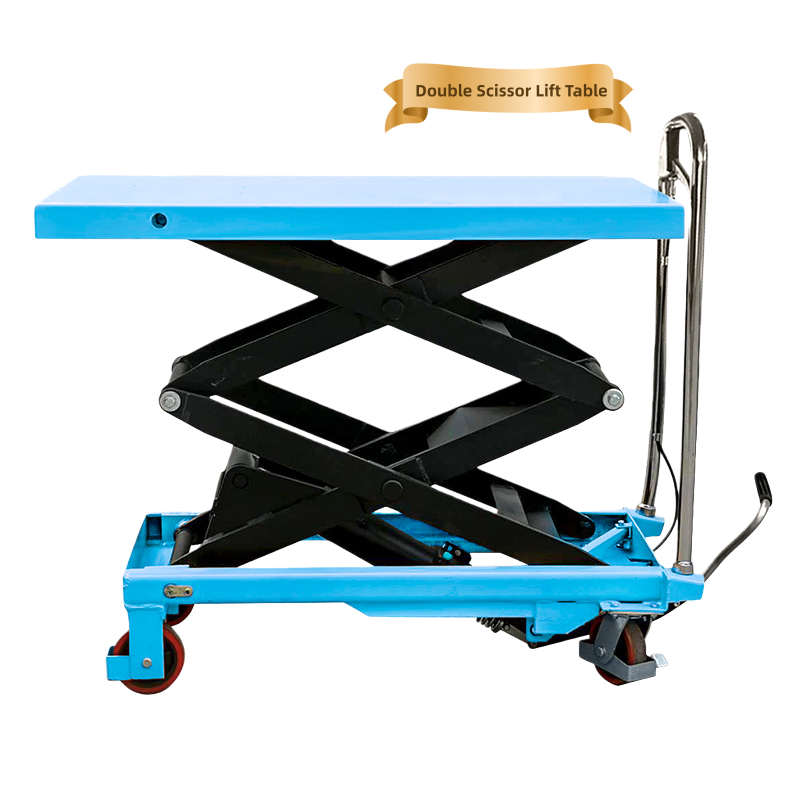

Hydraulic Lift Table, meticulously designed for seamless integration with work platforms, while boasting an impressive lifting capacity of up to 800kg.
Key Features:
Enhanced Safety: Our lift table is equipped with an advanced overload protection function, providing an extra layer of security during operations.
Unmatched Durability: Experience peace of mind with our lift table's reliable hydraulic performance, ensuring exceptional durability and an extended service life.
Effortless Control: The user-friendly ascending and descending control device eliminates the need to manipulate a fixed handle, streamlining operations for maximum efficiency.
Safety First: Designed in compliance with CE requirements, the optimal spacing between moving parts prioritizes safety by preventing finger pinching accidents.
Emergency Preparedness: Equipped with a robust wheel guard bracket and a responsive emergency brake on the rear wheel, our lift table swiftly halts wheel rotation in critical situations, safeguarding both personnel and equipment.
Elevate your work platform experience with our Hydraulic Lift Table, combining cutting-edge technology, unrivaled durability, and utmost safety to meet your lifting needs with precision.
| Model | ASPS150 | ASPS350 | ASPS500 | ASPS800 | |
| Load capacity | kg | 150 | 350 | 500 | 800 |
| Max.lift height | mm | 1100 | 1300 | 1550 | 1500 |
| Min.height of table | mm | 302 | 350 | 410 | 475 |
| Lifting height | mm | 798 | 950 | 1025 | 1025 |
| Table size | mm | 700*450*35 | 910*500*52 | 1010*520*60 | 1220*610*60 |
| Foot pedal cycles to max height | <=30 | <=60 | <=70 | <=70 | |
| Net weight | kg | 64 | 105 | `172 | 172 |
| Carton size | mm | 860*485*300 | 985*519*350 | 1370*645*470 | 1370*645*470 |
| Total height | mm | 920 | 970 | 969 | 961 |
| Tyre size | mm | φ100 | φ127 | φ127 | φ150 |
