Electric Reach Truck with 5000mm Lift Height AC Motor and 2000kg Load Capacity

Name: Electric Reach Truck with 5000mm Lift Height AC Motor and 2000kg Load Capacity
Brand: YANMING WEIGHING AND HANDLING SOLUTION CO.,LTD
SKU: WDGQ20QZ
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Yanming

Certification: ISO,CE,EGS

Model Number: WDGQ20QZ

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: pallet packing for export

Delivery Time: 5-20 work days as per order volume

Payment Terms: T/T,L/C

Supply Ability: 200 set/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Electric Reach Trucks 5000mm, Adjustable Electric Reach Trucks, Fully Electric Pallet Stacker 5000mm


Model NO.:	WDGQ20QZ	Fuel:	Electric
Load Center:	500mm	Lift Height:	3000~5000mm
Condition:	New	Tyres:	PU/Nylon
Wheelbase:	1360mm	Ground Clearance:	50mm
Steering:	EPS	Reach Distance:	500/585mm
Width Over Forks:	200-680mm	Lowered Fork Height:	35/35mm
Extended Mast Height:	3760/3760mm	Fork Dimensions:	35/100/1070mm
Operating:	Stand	Transport Package:	6PCS In One Pallet
Specification:	1750/1950/2190kg	HS Code:	84279000
Supply Ability:	500 Units/Month	After-sales Service:	Support
Warranty:	Support	Cab Location:	Adjustable
Type:	Stacker	Power:	AC Motor
Load Capacity:	1T - 5T	Customization:	Available \| Customized Request

Model NO.:	WDGQ20QZ
Fuel:	Electric
Load Center:	500mm
Lift Height:	3000~5000mm
Condition:	New
Tyres:	PU/Nylon
Wheelbase:	1360mm
Ground Clearance:	50mm
Steering:	EPS
Reach Distance:	500/585mm
Width Over Forks:	200-680mm
Lowered Fork Height:	35/35mm
Extended Mast Height:	3760/3760mm
Fork Dimensions:	35/100/1070mm
Operating:	Stand
Transport Package:	6PCS In One Pallet
Specification:	1750/1950/2190kg
HS Code:	84279000
Supply Ability:	500 Units/Month
After-sales Service:	Support
Warranty:	Support
Cab Location:	Adjustable
Type:	Stacker
Power:	AC Motor
Load Capacity:	1T - 5T
Customization:	Available \| Customized Request

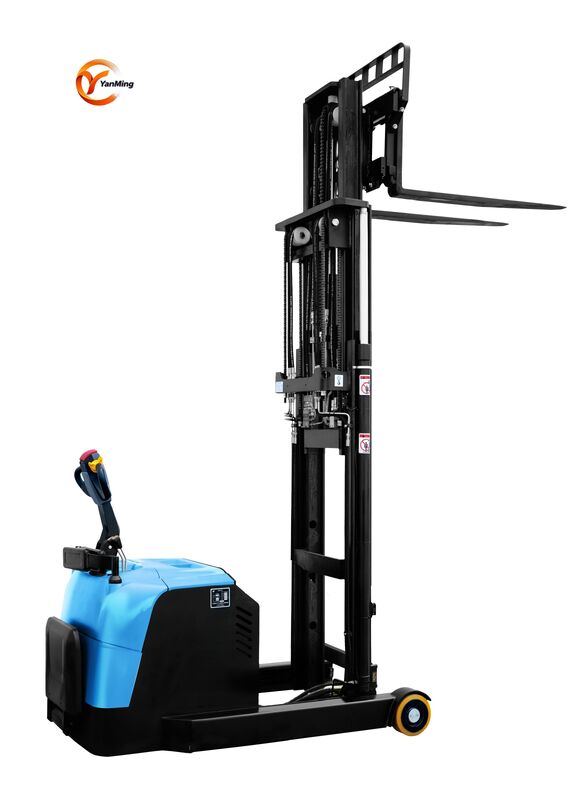

Electric Reach Truck with 5000mm Lift Height AC Motor and 2000kg Load Capacity

Electric Reach Trucks 5000mm Lift Height

CE ISO Approved 2000kg Electric Reach Stacker

This professional electric reach stacker features a 500/585mm reach distance and is designed for efficient material handling operations.

Controller self-diagnosis system for easier troubleshooting
Easy-access battery cover for convenient maintenance
Precision electronic limit switches for maximum lifting height control
AC drive system providing precise control and longer battery life
Aluminum cover design for superior heat dissipation and extended service life

Technical Specifications

Model	WDGQ20QZ
Load Capacity	2000kg
Tyre Size, Front	φ250x75mm
Tyre Size, Rear	Ф210x85mm
Lift Height	2500-3000/3300-3500/4500/5000/5500
Lowered Height	35mm
Overall Length	2300(foldable)/2815mm
Fork Dimensions	35/100/1070mm
Distance Between Fork Arms	200-680mm
Turning Radius	1615(foldable)/2025mm

About AIDA Lift

AIDA is a high-tech enterprise integrating R&D, production and service, providing professional material handling equipment and flexible intralogistics solutions for all scenarios.

Our product range includes electric pallet trucks, electric stackers, hand pallet trucks, semi-electric stackers, reach stackers, and other material handling equipment. These are widely used in logistics and warehousing, retail and wholesale, pharmaceutical, food, chemical, electronics, machinery, automotive, and other industries.

Certifications: ISO9001, ISO14001, SGS, and CE certified.

AIDA has established a strict quality assurance system and holds over 40 national patents. The company has been recognized as a "Small Giant Enterprise in Hunan Province," "First Batch Pilot Enterprise for Integration of Advanced Manufacturing and Modern Service Industries in Hunan Province," "Demonstration Enterprise of Intelligent Manufacturing in Changsha City," and "Hunan Enterprise Technology Center."

Our design philosophy centers on "Energy saving, environmental protection, high efficiency and intelligence," and we are committed to becoming smart digital experts for intralogistics.
