Wholesale 6 Axis Arm MIG Welding Robot Station on Sale

Name: Wholesale 6 Axis Arm MIG Welding Robot Station on Sale
Brand: AIDA FORKLIFT EQUIPMENT CO., LTD.
SKU: ZGRB-06-1400-010-W-MK
Availability: InStock

Product Details

Place of Origin: China

Brand Name: AIDA

Certification: CE

Model Number: ZGRB-06-1400-010-W-MK

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Wooden Case Package

Delivery Time: 20 work days as per order volume

Payment Terms: L/C, T/T

Supply Ability: 200 set/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                MIG Welding Robot Station, Wholesale MIG Welding Robot Station


Model NO.:	ZGRB-06-1400-010-W-MK	Measure Method:	Automatic
Application:	Metal Fabrication Industry，Automotive Industry	Function:	Efficiency, Precision, Safety, Cost-saving.
Structure:	ARC Welding Robot	Transport Package:	Wooden Case Package
Trademark:	AIDA	Origin:	China
After-sales Service:	Support	Warranty:	Support
Customization:	Available \| Customized Request	Control Mode:	Point To Point Control

Model NO.:	ZGRB-06-1400-010-W-MK
Measure Method:	Automatic
Application:	Metal Fabrication Industry，Automotive Industry
Function:	Efficiency, Precision, Safety, Cost-saving.
Structure:	ARC Welding Robot
Transport Package:	Wooden Case Package
Trademark:	AIDA
Origin:	China
After-sales Service:	Support
Warranty:	Support
Customization:	Available \| Customized Request
Control Mode:	Point To Point Control

Wholesale 6 Axis Arm MIG Welding Robot Station on Sale

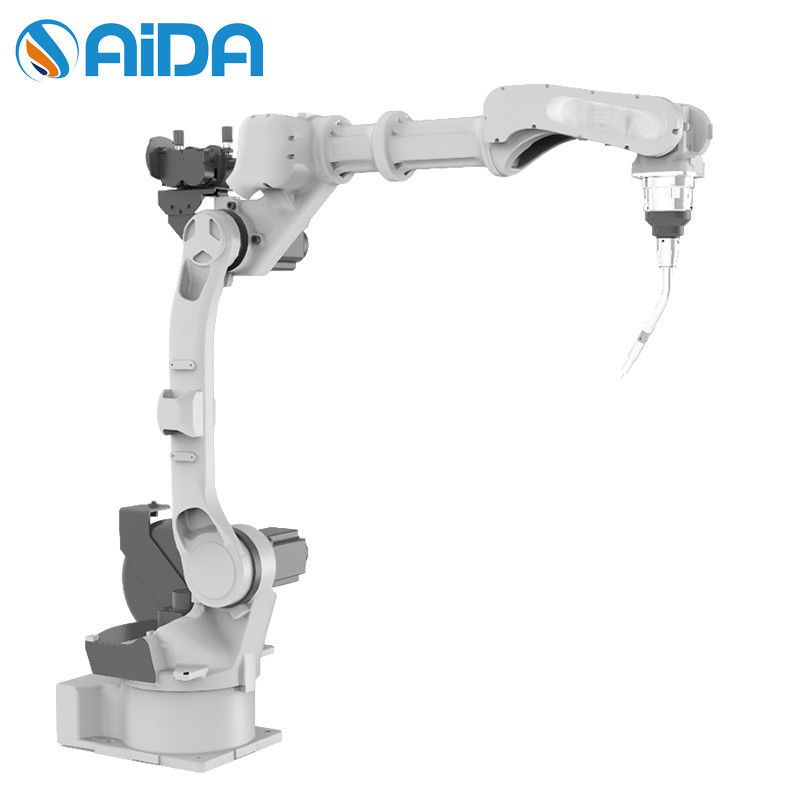

6-Axis Arc Welding Arm Payload 10kg Range 1400mm Welding Robot
The 6-axis arc welding robot is a type of industrial robot specifically designed for arc welding applications. Arc welding is a welding process that uses an electric arc to create a fusion of metals. These robots are equipped with a 6-axis articulated arm that provides flexibility and precision in maneuvering the welding torch to perform welding tasks.

The six axes of motion in a 6-axis arc welding robot allow for a wide range of movement and positioning capabilities, enabling the robot to reach different points within its work envelope and adjust its orientation as needed. This flexibility is crucial in arc welding applications where welding may need to be performed on complex geometries or in hard-to-reach areas.

Robotic welding is a highly advanced version of automated welding, in which machines conduct the welding, but welders still control and supervise the process. The use of robotic technology allows for precise and quick results, less waste, and greater safety.

Wholesale 6 Axis Arm MIG Welding Robot Station on Sale 0

Product Description

Wholesale 6 Axis Arm MIG Welding Robot Station on Sale 1

Wholesale 6 Axis Arm MIG Welding Robot Station on Sale 2

Wholesale 6 Axis Arm MIG Welding Robot Station on Sale 3

Product Specification

Model	ZGRB-06-2000-012-W-MK
Performance	Installation method	Ground, hoisting, wall
	Freedom of movement	6-axis
	Payload	12 kg
	Maximum reach	2000 mm
	Repeat positioning accuracy	0.05 mm
	Self weight	313kg
	Temperature	0-45°C
	Humidity	20%-80%
	Power capacity	4.5 KVA
Max. Working Range Swivel	J1	± 160º
	J2	-55º ~ +170º
	J3	-75º ~ +145º
	J4	± 190º
	J5	± 130º
	J6	± 220º
Max. Speed	J1	179º/s
	J2	179º/s
	J3	162º/s
	J4	315º/s
	J5	276º/s
	J6	1356º/s
Allowable Moment Bending	J4	103.5Nm
	J5	51.84Nm
	J6	32.64Nm

Product Specification

It is widely used in Automotive Industry, Aerospace Industry, Railway Industry, Metal Fabrication,Shipbuilding,
Construction,Oil and Gas Industry,Heavy Machinery Manufacturing, etc.

Standing Type Electric Medium Position Electric Order Picker

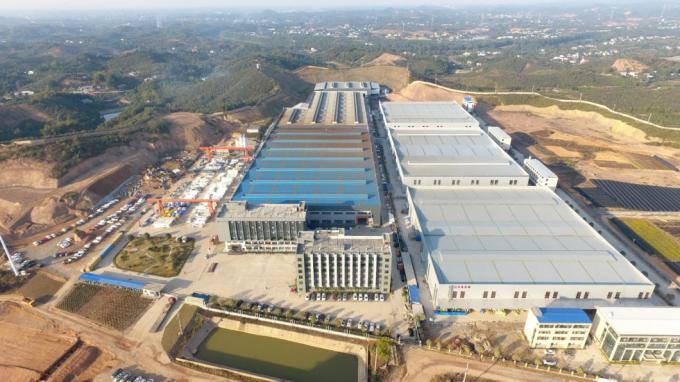

AIDA is a high-tech enterprise integrating R&D, production and service, as a solution provider of professional material
handling equipment and flexible intralogistics system for all scenarios.

Offer products including series of electric pallet truck, electric stacker and a series of hand pallet truck, semi electric
stacker and reach stacker and other material handling equipment. Widely used in logistics and warehousing, retail
and wholesale, medicine, food, chemical, electronics, machinery, automobile and other industries.

AIDA have established a strict quality assurance system and have passed ISO9001,ISO14001,SGS,and CE certification.
It is a national high-tech enterprise with more than 40 national patents, which has been rated as "Small giant enterprise in
Hunan Province", "The first batch of pilot enterprises for the integration of advanced manufacturing and modern service
industries in Hunan Province","Demonstration enterprise of intelligent manufacturing in Changsha City"," Hunan Enterprise
Technology Center".

"Energy saving, environmental protection, high efficiency and intelligence" is the design concept of AIDA products, and it is
committed to becoming a smart digital expert for intralogistics.
