Product Details
Place of Origin: China
Brand Name: AIDA
Certification: ISO,CE,EGS
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: pallet packing for export
Delivery Time: 5-20 work days as per order volume
Payment Terms: T/T,L/C
Supply Ability: 200 set/month
Model NO.: |
WCPD20 |
Fuel: |
Electric |
Load Center: |
500mm |
Lift Height: |
3000-6000mm |
Condition: |
New |
Overall Length: |
3488mm |
Lowered Height: |
2045mm |
Battery: |
Lead-Acid 48V 560ah |
Net Weight: |
3240kg |
Fork Dimensions: |
1070×122×40 |
Lift Motor: |
11kw |
Tyre Size, Rear: |
7-12-12pr |
Tyre Size, Front: |
7-12-12pr |
Max Lift Height: |
3000/3500/4000/4500/5000/5500/6000mm |
Drive Motor: |
11kw |
Transport Package: |
6PCS In One Pallet |
Specification: |
2418*1150*2205mm |
Trademark: |
AIDA |
Origin: |
China |
HS Code: |
84279000 |
Supply Ability: |
100 Units/Month |
After-sales Service: |
Support |
Warranty: |
1 Year |
Cab Location: |
Adjustable |
Type: |
Electric Forklift |
Power: |
AC Motor |
Load Capacity: |
1T - 5T |
Customization: |
Available | Customized Request |
Model NO.: |
WCPD20 |
Fuel: |
Electric |
Load Center: |
500mm |
Lift Height: |
3000-6000mm |
Condition: |
New |
Overall Length: |
3488mm |
Lowered Height: |
2045mm |
Battery: |
Lead-Acid 48V 560ah |
Net Weight: |
3240kg |
Fork Dimensions: |
1070×122×40 |
Lift Motor: |
11kw |
Tyre Size, Rear: |
7-12-12pr |
Tyre Size, Front: |
7-12-12pr |
Max Lift Height: |
3000/3500/4000/4500/5000/5500/6000mm |
Drive Motor: |
11kw |
Transport Package: |
6PCS In One Pallet |
Specification: |
2418*1150*2205mm |
Trademark: |
AIDA |
Origin: |
China |
HS Code: |
84279000 |
Supply Ability: |
100 Units/Month |
After-sales Service: |
Support |
Warranty: |
1 Year |
Cab Location: |
Adjustable |
Type: |
Electric Forklift |
Power: |
AC Motor |
Load Capacity: |
1T - 5T |
Customization: |
Available | Customized Request |

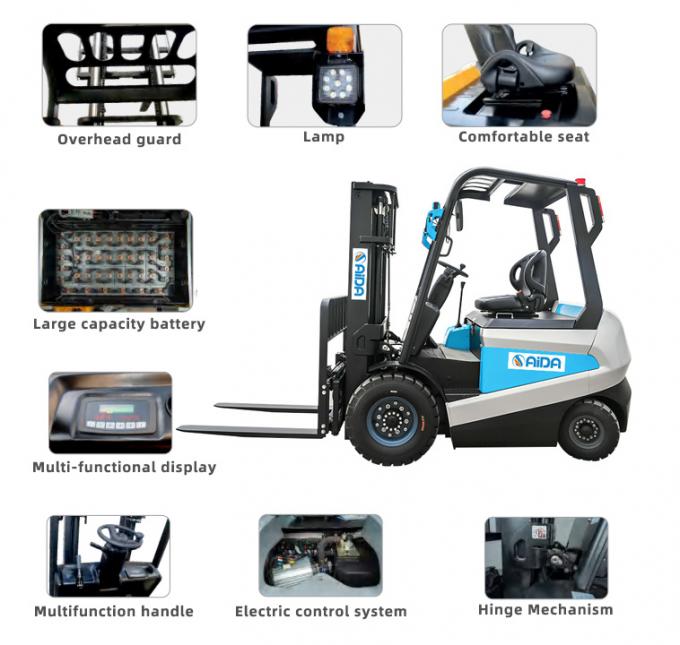

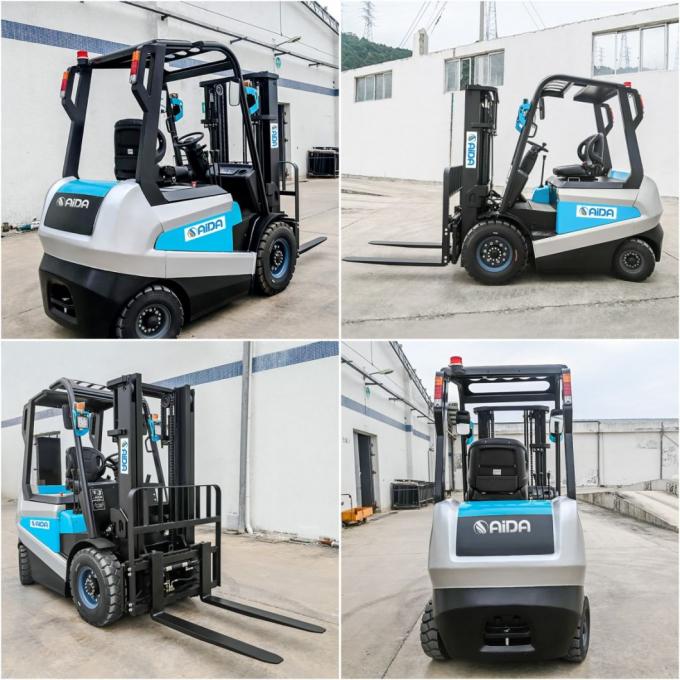

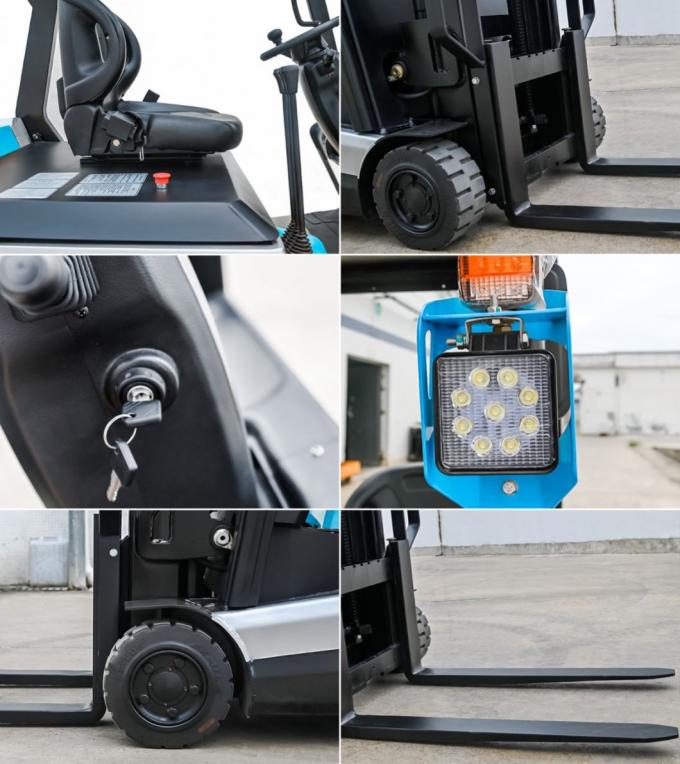

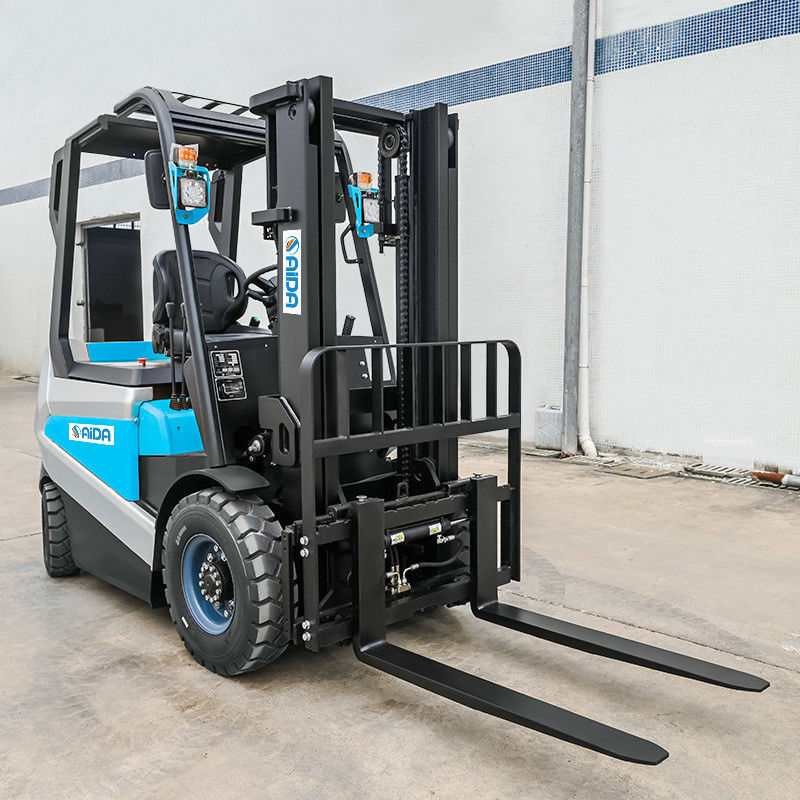

Hot-Selling Powered Pallet Electric Forklift: Ensuring Safety for 2000-2500kg Loads
1. Equipped with a high-power, high-torque AC drive motor for superior performance.
2. Maintenance-free design eliminates carbon brushes, resulting in an extended service life.
3. Offers low noise, high efficiency, and exceptional reliability, with a well-designed low center of gravity for enhanced stability.
4. Provides effortless steering, promoting energy conservation and environmental friendliness, while minimizing vibrations during straight-line driving.
5. Energy Recharge: During braking, the forklift achieves an impressive 30% energy recharge efficiency, reducing power consumption and enhancing battery lifespan.
| Model | WCPD20 |
| Load capacity | 2000kg |
| Tyre size, front | 7-12-12PR |
| Tyre size, rear | 18×7-8-14PR |
| Lift height | 3000/3500/4000/4500/5000/5500/6000 |
| Lowered height | 2045mm |
| Overall length | 3488mm |
| Fork dimensions | 1070×122×40 |
| Distance between fork arms | Adjustable Fork 250~1040mm |
| Turning radius | 2170 |
| Groung clearance | 110mm |
| Travel speed | 12.5/13.5 km/h |
| Gradient,Laden/unladen | 15/15% |
| Drive motor | 11kw |
| Lift motor | 11kw |
| Battery | Lead-acid 48V 560Ah |

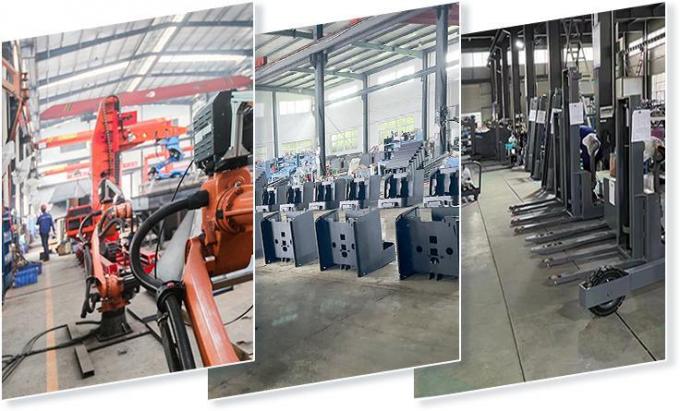

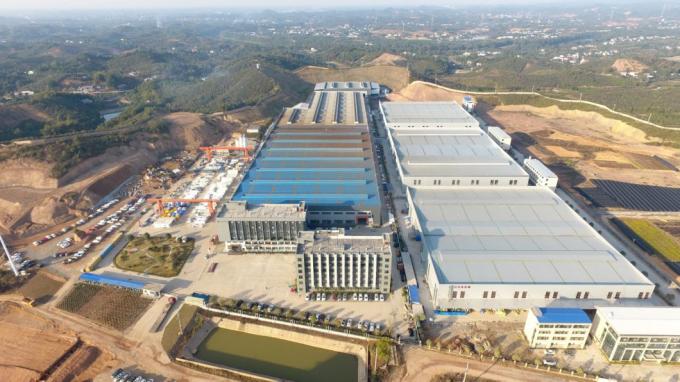

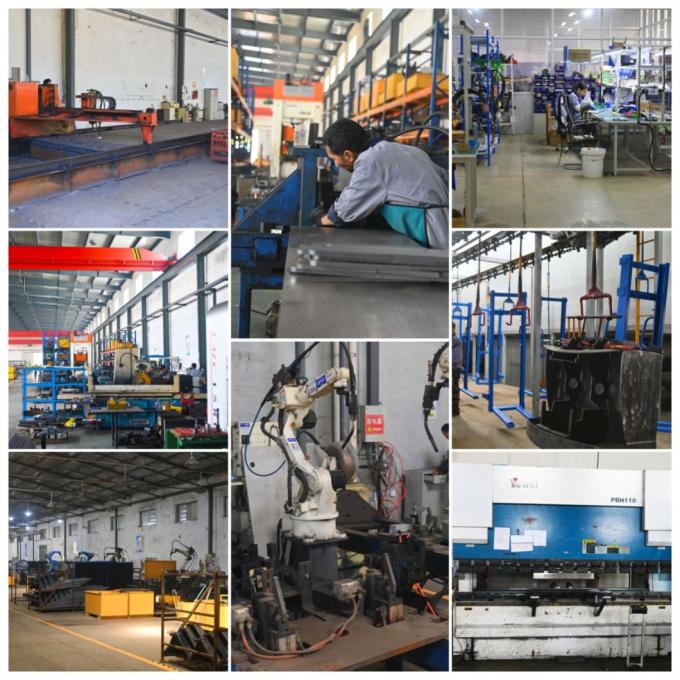

AIDA is a high-tech enterprise that specializes in R&D, production, and service, offering professional material handling equipment and flexible intralogistics systems for various scenarios.
The company's product range includes electric pallet trucks, electric stackers, hand pallet trucks, semi-electric stackers, reach stackers, and other material handling equipment. These products find extensive applications in logistics, warehousing, retail, wholesale, medicine, food, chemical, electronics, machinery, automobile, and other industries.
With a strong emphasis on quality, AIDA has implemented a strict quality assurance system and obtained ISO9001, ISO14001, SGS, and CE certifications. It holds over 40 national patents and has gained recognition as a "Small Giant Enterprise in Hunan Province," one of the first pilot enterprises for integrating advanced manufacturing and modern service industries in the province, a demonstration enterprise of intelligent manufacturing in Changsha City, and the Hunan Enterprise Technology Center.
AIDA's design concept revolves around "energy saving, environmental protection, high efficiency, and intelligence." The company is dedicated to becoming a leading expert in smart digital solutions for intralogistics.
