Product Details
Place of Origin: China
Brand Name: AIDA
Certification: ISO,CE,EGS
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: pallet packing for export
Delivery Time: 5-20 work days as per order volume
Payment Terms: T/T,L/C
Supply Ability: 200 set/month
Model NO.: |
WDG15QL |
Fuel: |
Electric |
Lift Height: |
1600-3500mm |
Drive Motor: |
0.75kw |
Lift Motor: |
2kw |
Max Lift Height: |
1600/2500/3000/3500mm |
Specification: |
1750*790mm |
Load Capacity: |
1500kg |
Battery Capacity: |
120Ah |
Charging Time: |
6-8 Hours |
Fork Length: |
1200mm |
Fork Thickness: |
50mm |
Fork Width: |
160mm |
Lifting Capacity: |
1000kg |
Lifting Height: |
3000mm |
Motor Type: |
DC Motor |
Running Time: |
6-8 Hours |
Size: |
2000*1200*1800mm |
Model NO.: |
WDG15QL |
Fuel: |
Electric |
Lift Height: |
1600-3500mm |
Drive Motor: |
0.75kw |
Lift Motor: |
2kw |
Max Lift Height: |
1600/2500/3000/3500mm |
Specification: |
1750*790mm |
Load Capacity: |
1500kg |
Battery Capacity: |
120Ah |
Charging Time: |
6-8 Hours |
Fork Length: |
1200mm |
Fork Thickness: |
50mm |
Fork Width: |
160mm |
Lifting Capacity: |
1000kg |
Lifting Height: |
3000mm |
Motor Type: |
DC Motor |
Running Time: |
6-8 Hours |
Size: |
2000*1200*1800mm |

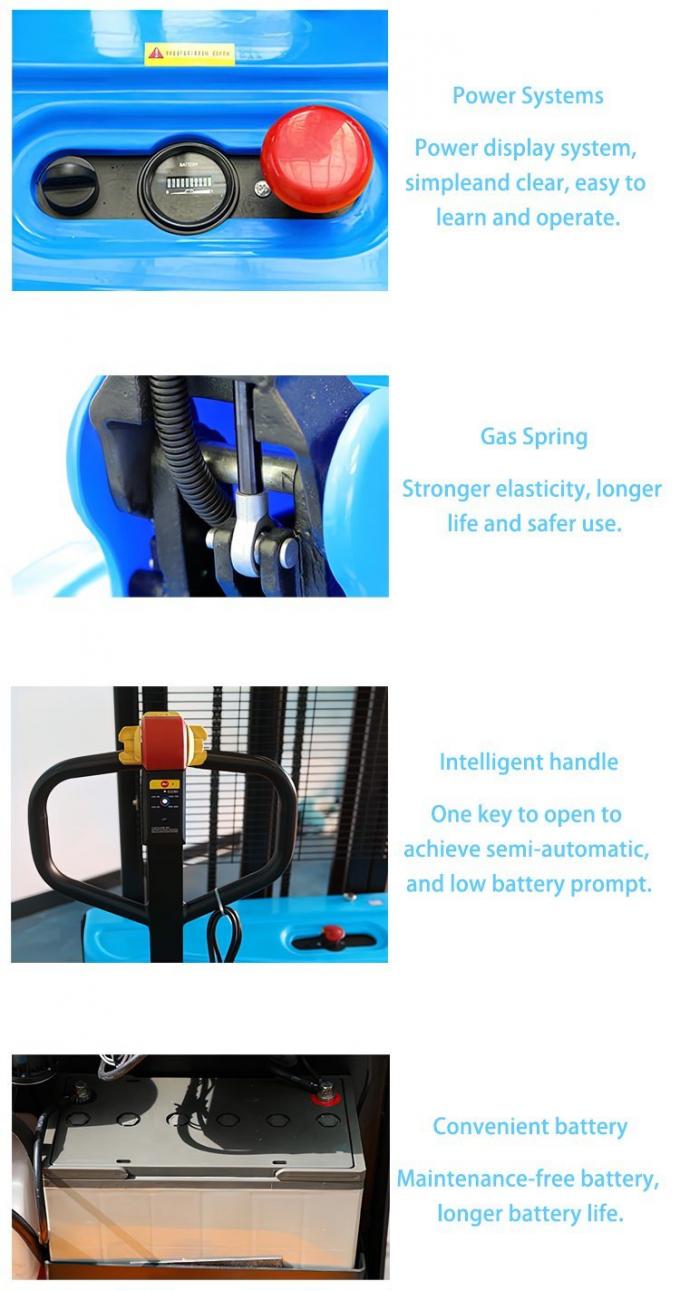

Key Features:
Noise Reduction: Our stackers are equipped with advanced shock absorbers, effectively reducing noise for a quieter operation.
Extended Battery Life: Benefit from the low voltage protection feature, which safeguards the battery and ensures longer operational hours.
Unmatched Stability: The four-point low center of gravity design offers unparalleled stability, instilling confidence during handling tasks.
Efficient and Compact: Our stackers feature a compact design that incorporates regenerative braking for enhanced efficiency. Additionally, the streamlined structure facilitates easy maintenance, saving you time and effort.
Versatile Capacity: Lift and slide loads of up to 1.5 tons effortlessly, with mast options ranging from 1.6 to 3.5 meters to accommodate various lifting requirements.
Certified Quality: Rest assured knowing that our electric pallet stackers are CE and ISO certified, guaranteeing compliance with international standards.
Choose AIDA for top-notch electric pallet stackers that prioritize quality, reliability, and performance. Contact us today to discover the perfect solution for your lifting needs. Elevate your operations with AIDA's expertise.
Specification
| Model | WDG10QL |
| Load capacity | 1000kg |
| Tyre size, front | φ80×70 |
| Tyre size, rear | φ210×70 |
| Lift height | 1600/2500/3000/3500mm |
| Lowered height | 90mm |
| Overall length | 1750mm |
| Fork dimensions | 1070×142×60mm |
| Distance between fork arms | 550/660mm |
| Turning radius | 1437mm |
| Groung clearance | 30mm |
| Travel speed | 3.5/4 km/h |
| Gradient,Laden/unladen | 3/10% |
| Drive motor | 0.6kw |
| Lift motor | 2kw |
| Battery | lead-acid 24V 65Ah |
