Product Details
Place of Origin: China
Brand Name: AIDA
Certification: ISO,CE,EGS
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: pallet packing for export
Delivery Time: 5-20 work days as per order volume
Payment Terms: T/T,L/C
Supply Ability: 200 set/month
Model NO.: |
WDG10QL |
Fuel: |
Electric |
Load Center: |
500mm |
Lift Height: |
1600-3500mm |
Condition: |
New |
Drive Motor: |
0.6kw |
Lift Motor: |
2kw |
Max Lift Height: |
200-300in |
Transport Package: |
6PCS In One Pallet |
Specification: |
1750&790*90mm |
Trademark: |
AIDA |
Origin: |
China |
HS Code: |
84279000 |
Supply Ability: |
600 Units/Month |
After-sales Service: |
Support |
Warranty: |
1 Year |
Cab Location: |
Adjustable |
Type: |
Stacker |
Power: |
DC Motor |
Load Capacity: |
2,000-3,000lbs |
Customization: |
Available | Customized Request |
Control System: |
Manual/Automatic |
Display: |
LED/LCD |
Fork Length: |
48-72in |
Fork Width: |
0.5-1 Meters |
Lifting Height: |
3-6 Meters |
Operating Temperature: |
-20 To 50 Degrees Celsius |
Power Source: |
Electric |
Product: |
Electric Stacker Forklift |
Safety Features: |
Safety Belt, Emergency Stop Button, Etc. |
Speed: |
3-10 Km/h |
Steering Type: |
Manual/Power |
Tire Type: |
Solid/Pneumatic |
Turning Radius: |
60-90in |
Brakes: |
Electric/Hydraulic |
Controls: |
Manual/Automatic |
Lift Speed: |
20-30ft/min |
Lower Speed: |
20-30ft/min |
Mast Type: |
2-Stage/3-Stage |
Name: |
Electric Stacker Forklift |
Steering: |
Manual/Power |
Travel Speed: |
3-5mph |
Model NO.: |
WDG10QL |
Fuel: |
Electric |
Load Center: |
500mm |
Lift Height: |
1600-3500mm |
Condition: |
New |
Drive Motor: |
0.6kw |
Lift Motor: |
2kw |
Max Lift Height: |
200-300in |
Transport Package: |
6PCS In One Pallet |
Specification: |
1750&790*90mm |
Trademark: |
AIDA |
Origin: |
China |
HS Code: |
84279000 |
Supply Ability: |
600 Units/Month |
After-sales Service: |
Support |
Warranty: |
1 Year |
Cab Location: |
Adjustable |
Type: |
Stacker |
Power: |
DC Motor |
Load Capacity: |
2,000-3,000lbs |
Customization: |
Available | Customized Request |
Control System: |
Manual/Automatic |
Display: |
LED/LCD |
Fork Length: |
48-72in |
Fork Width: |
0.5-1 Meters |
Lifting Height: |
3-6 Meters |
Operating Temperature: |
-20 To 50 Degrees Celsius |
Power Source: |
Electric |
Product: |
Electric Stacker Forklift |
Safety Features: |
Safety Belt, Emergency Stop Button, Etc. |
Speed: |
3-10 Km/h |
Steering Type: |
Manual/Power |
Tire Type: |
Solid/Pneumatic |
Turning Radius: |
60-90in |
Brakes: |
Electric/Hydraulic |
Controls: |
Manual/Automatic |
Lift Speed: |
20-30ft/min |
Lower Speed: |
20-30ft/min |
Mast Type: |
2-Stage/3-Stage |
Name: |
Electric Stacker Forklift |
Steering: |
Manual/Power |
Travel Speed: |
3-5mph |

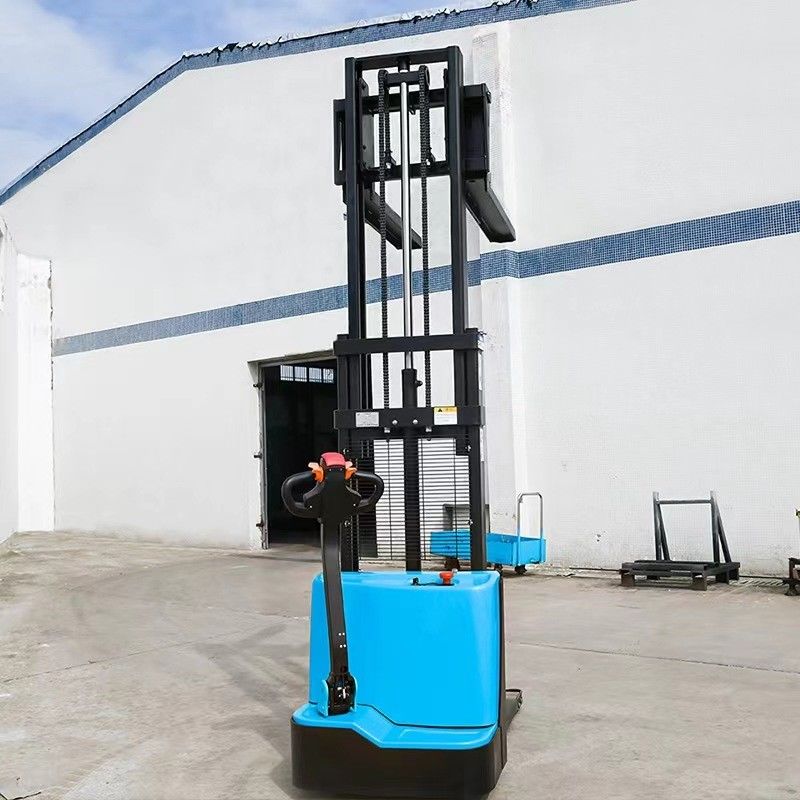

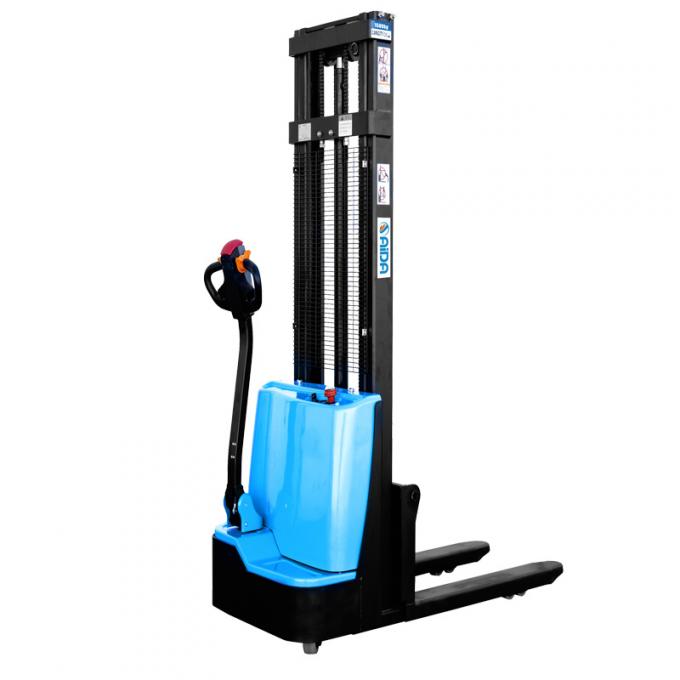

Maneuver with Ease with AIDA’s Electric Pallet Stackers
Glide through tight spaces effortlessly with our compact yet powerful electric pallet stackers. The advanced low voltage protection preserves your battery life for extended runtimes.
The adjustable castor wheels deliver smooth travel over uneven surfaces. With excellent maneuverability, these nimble stackers can operate efficiently even in confined areas.
The integrated shock absorption minimizes vibration for comfort and control. The innovative wheel assembly detaches as one unit for straightforward maintenance and service.
Lift up to 1,000kg safely with AIDA’s full-featured electric stackers. Contact us today to find your ideal lifting partner.
| Model | WDG10QL |
| Load capacity | 1000kg |
| Tyre size, front | φ80×70 |
| Tyre size, rear | φ210×70 |
| Lift height | 1600/2500/3000/3500mm |
| Lowered height | 90mm |
| Overall length | 1750mm |
| Fork dimensions | 1070×142×60mm |
| Distance between fork arms | 550/660mm |
| Turning radius | 1437mm |
| Groung clearance | 30mm |
| Travel speed | 3.5/4 km/h |
| Gradient,Laden/unladen | 3/10% |
| Drive motor | 0.6kw |
| Lift motor | 2kw |
| Battery | lead-acid 24V 65Ah |
AIDA is a high-tech enterprise integrating R&D, production and service, as a solution provider of professional material
handling equipment and flexible intralogistics system for all scenarios.
Offer products including series of electric pallet truck, electric stacker and a series of hand pallet truck, semi electric
stacker and reach stacker and other material handling equipment. Widely used in logistics and warehousing, retail
and wholesale, medicine, food, chemical, electronics, machinery, automobile and other industries.
AIDA have established a strict quality assurance system and have passed ISO9001,ISO14001,SGS,and CE certification.
It is a national high-tech enterprise with more than 40 national patents, which has been rated as "Small giant enterprise in
Hunan Province", "The first batch of pilot enterprises for the integration of advanced manufacturing and modern service
industries in Hunan Province","Demonstration enterprise of intelligent manufacturing in Changsha City"," Hunan Enterprise
Technology Center".
"Energy saving, environmental protection, high efficiency and intelligence" is the design concept of AIDA products, and it is
committed to becoming a smart digital expert for intralogistics.
Q1: Are you a factory or a trading company?
A: We are a factory. We are the professional manufacturer of material handling equipment.
Q2: What products do you mainly do?
A:We specialize in producing all kinds of material handling vehicle,such as hand/semi electric/electric pallet truck,
manual/electric/semi electric stacker,electric forklift.
Q3: Are the pallet trucks covered by a warranty?
A: Yes. AII our products carry a full 1-year major parts warranty.
Q4: What is your payment term?
A: T/T or L/C, if you want any other way, please contact us.
Q5: How about your shipping methods?
A: Transportation depends on the client's choice, usually by sea or rail. You can also choose other shipping methods
and inform us before shipment.
Q6: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
