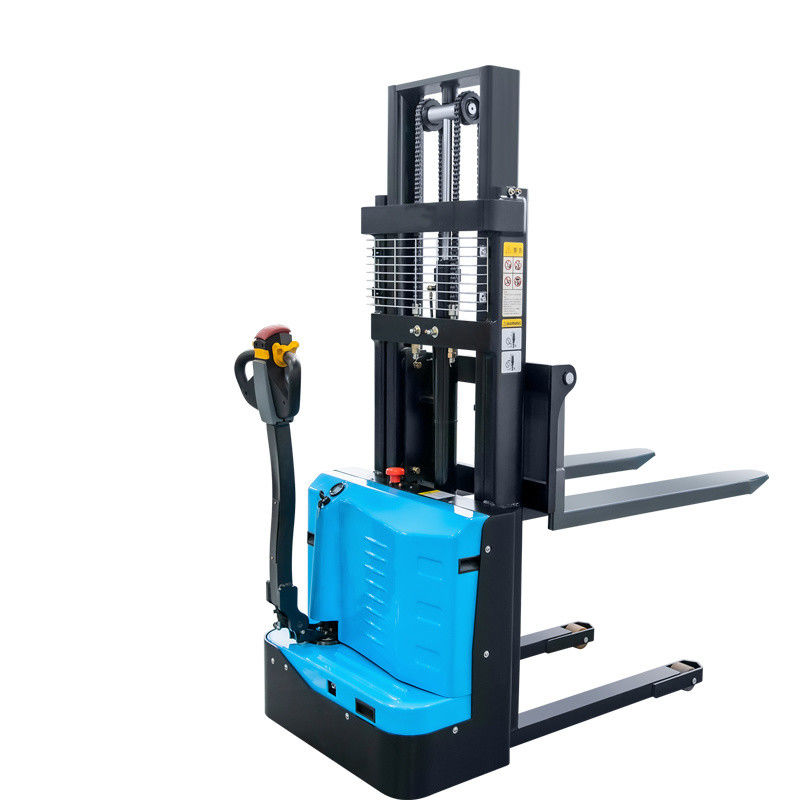

Lead-Acid Battery Electric Stacker with 1.5 Ton Load Capacity and 3000mm Lift Height

Product Details

Place of Origin: China

Brand Name: Yanming

Certification: ISO,CE,EGS

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: pallet packing for export

Delivery Time: 5-20 work days as per order volume

Payment Terms: T/T,L/C

Supply Ability: 200 set/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Lead Acid Electric Stacker Forklift, High Efficiency Electric Stacker Forklift, Lead Acid Stand On Stacker


Model NO.:	DGX15-25	Fuel:	Electric
Load Center:	500mm	Lift Height:	2000-3000mm
Condition:	New	Lifting Spped,Laden/Unladen:	45mm/55s
Travel Speed,Laden/Unladen:	4km/4.5h	Battery:	Lead-Acid 24V/60ah
Net Weight(with Battrey):	500kg	Falling Speed,Laden/Unladen:	40mm/55s
Overall Length:	1730mm	Turning Radius:	1410mm
Minimum Ground Clearance:	30mm	Max Lift Height:	2000/2500/3000mm
Transport Package:	Plastic Film Packaging	Specification:	6508001580mm
Trademark:	AIDA	Origin:	China
HS Code:	84279000	Supply Ability:	1250 Units/Month
After-sales Service:	Support	Warranty:	1 Year
Cab Location:	Adjustable	Type:	Stacker
Power:	AC Motor	Load Capacity:	1T - 5T
Customization:	Available \| Customized Request

Model NO.:	DGX15-25
Fuel:	Electric
Load Center:	500mm
Lift Height:	2000-3000mm
Condition:	New
Lifting Spped,Laden/Unladen:	45mm/55s
Travel Speed,Laden/Unladen:	4km/4.5h
Battery:	Lead-Acid 24V/60ah
Net Weight(with Battrey):	500kg
Falling Speed,Laden/Unladen:	40mm/55s
Overall Length:	1730mm
Turning Radius:	1410mm
Minimum Ground Clearance:	30mm
Max Lift Height:	2000/2500/3000mm
Transport Package:	Plastic Film Packaging
Specification:	6508001580mm
Trademark:	AIDA
Origin:	China
HS Code:	84279000
Supply Ability:	1250 Units/Month
After-sales Service:	Support
Warranty:	1 Year
Cab Location:	Adjustable
Type:	Stacker
Power:	AC Motor
Load Capacity:	1T - 5T
Customization:	Available \| Customized Request

Lead-Acid Battery Electric Stacker with 1.5 Ton Load Capacity and 3000mm Lift Height

Yanming 1.5 Ton Electric Power Stacker - Enhanced Safety and Performance

This electric power stacker delivers efficient, safe stacking up to 3 meters high with advanced features designed for industrial applications.

Key Features

Maintenance-free brushless permanent magnet drive motor for smooth, powerful operation
Explosion-proof hydraulic system and external charger provide enhanced safety
Compact size and offset handle optimized for maneuvering in tight spaces
Advanced drive technology enables high performance lifting up to 1.5 tons
Ergonomic tiller arm with optimized offset reduces operator fatigue

Operators can stack pallets safely up to 2, 2.5 or 3 meters high to maximize warehouse density. Designed for excellent maneuverability, the power stacker handles smoothly in narrow aisles and confined areas.

Technical Specifications

Model	DGX15-25
Load Capacity	1500kg
Lift Height	2500mm
Fork Ground Clearance	30mm
Overall Length	1730mm
Fork Dimensions	1080×140×60mm
Fork Distance	685mm
Turning Radius	1410mm
Travel Speed (Laden/Unladen)	4/4.5 km/h
Lifting Speed (Laden/Unladen)	45/55 mm/s
Falling Speed (Laden/Unladen)	40/55 mm/s
Battery	Lead-acid 24V/60Ah
Net Weight	540kg

Product Images

About AIDA

AIDA is a high-tech enterprise integrating R&D, production and service, serving as a solution provider of professional material handling equipment and flexible intralogistics systems for all scenarios.

We offer products including series of electric pallet trucks, electric stackers, hand pallet trucks, semi-electric stackers, reach stackers and other material handling equipment. Widely used in logistics and warehousing, retail and wholesale, medicine, food, chemical, electronics, machinery, automobile and other industries.

AIDA has established a strict quality assurance system and has passed ISO9001, ISO14001, SGS, and CE certification. We are a national high-tech enterprise with more than 40 national patents, recognized as "Small Giant Enterprise in Hunan Province", "The First Batch of Pilot Enterprises for Integration of Advanced Manufacturing and Modern Service Industries in Hunan Province", "Demonstration Enterprise of Intelligent Manufacturing in Changsha City", and "Hunan Enterprise Technology Center".

"Energy saving, environmental protection, high efficiency and intelligence" is the design concept of AIDA products, and we are committed to becoming a smart digital expert for intralogistics.

Frequently Asked Questions

Choose from 2, 2.5 or 3 meter lift heights to customize your electric power stacker model. Contact AIDA today to boost your stacking productivity safely.
