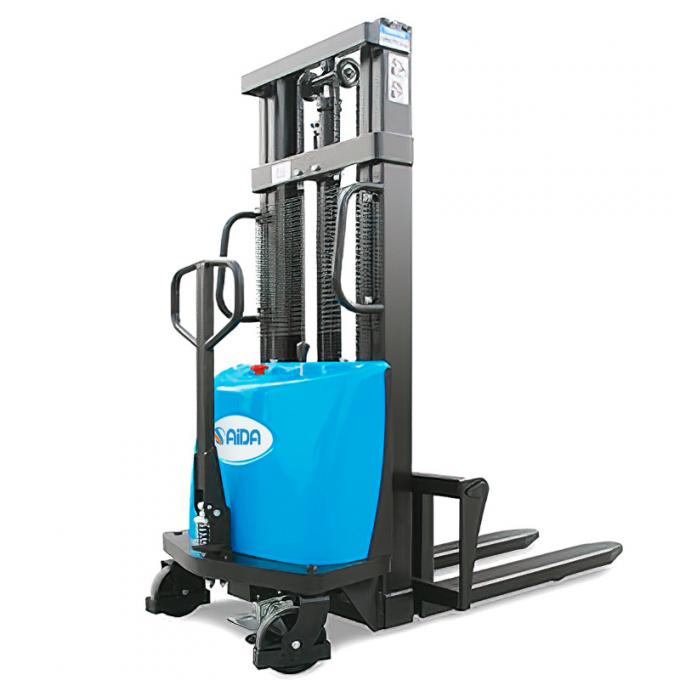

Labor Saving Semi Electric Stacker 1.5 Ton , Battery Pallet Stacker 3.5m Lift Height

Product Details

Place of Origin: China

Brand Name: AIDA

Certification: ISO,CE,EGS

Model Number: WDG20B

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: pallet packing for export

Delivery Time: 5-20 work days as per order volume

Payment Terms: T/T,L/C

Supply Ability: 200 set/month

Get Best Price
Highlight:

Labor Saving Semi Electric Stacker

,

Semi Electric Stacker 3.5m

,

Battery Pallet Stacker 3.5m

Model NO.:
WDG20B
Fuel:
Semi-electric
Load Center:
500mm
Lift Height:
1600-4000mm
Lowered Height:
90mm
Fork Dimensions:
1070*142*60mm
Overall Length:
1505mm
Groung Clearance:
25mm
Turning Radius:
1415mm
Max Lift Height:
1600/2500/3000/3500/4000mm
Specification:
1505*880mm
Origin:
China
HS Code:
84279000
Supply Ability:
600 Units/Month
After-sales Service:
Support
Warranty:
1 Year
Power:
DC Motor
Load Capacity:
2000kg
Model NO.:
WDG20B
Fuel:
Semi-electric
Load Center:
500mm
Lift Height:
1600-4000mm
Lowered Height:
90mm
Fork Dimensions:
1070*142*60mm
Overall Length:
1505mm
Groung Clearance:
25mm
Turning Radius:
1415mm
Max Lift Height:
1600/2500/3000/3500/4000mm
Specification:
1505*880mm
Origin:
China
HS Code:
84279000
Supply Ability:
600 Units/Month
After-sales Service:
Support
Warranty:
1 Year
Power:
DC Motor
Load Capacity:
2000kg
Labor Saving Semi Electric Stacker 1.5 Ton , Battery Pallet Stacker 3.5m Lift Height

Labor Saving Semi Electric Stacker 1.5 Ton , Battery Pallet Stacker 3.5m Lift Height

Product Description



A semi-electric stacker combines the advantages of both manual and electric stackers, offering several benefits over manual or fully electric alternatives. Here are the advantages of a semi-electric stacker:

Powered lifting: The semi-electric stacker features an electrically powered lifting mechanism, allowing operators to lift and lower loads effortlessly with the push of a button or lever. This eliminates the need for manual pumping or cranking, reducing operator fatigue and increasing efficiency.

Manual propulsion: Unlike fully electric stackers that are entirely motorized, a semi-electric stacker retains a manual propulsion system. Operators can easily maneuver the stacker manually using its handle, similar to a manual pallet jack. This provides greater control over movement and makes it easier to navigate in tight spaces or congested areas.

Cost-effective: Semi-electric stackers are generally more affordable compared to fully electric stackers. While they offer the convenience of powered lifting, they do not require the same level of investment or ongoing maintenance as fully electric models. This makes them a cost-effective solution for businesses that need occasional powered lifting capabilities without the need for continuous operation.

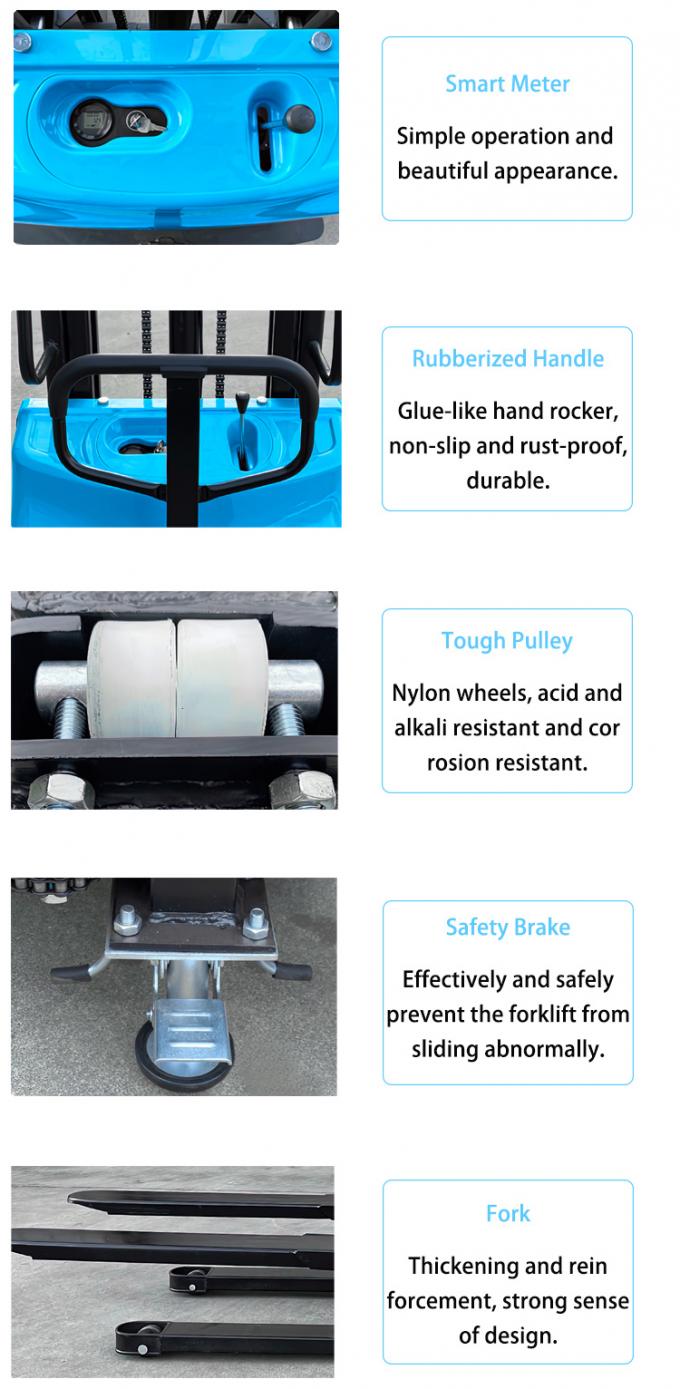

Stacker details
1) Low center of gravity makes the truck more stable and reliable;
2) High-quality steel ensures the stability and strength of the vehicle;
3) Using high-quality pump station, light and flexible, labor-saving and efficient;
4) An explosion-proof valve ensures that the platform descends smoothly and protects the safety of the operator;
5) The buttons arranged according to ergonomic requirements are more in line with the operator's operating habits.

Technical Parameters

Model WDG20B
Load capacity 2000kg
Tyre size, front φ180×50
Tyre size, rear φ80×70
Lift height 1600/2000/2500/3000/3500/4000mm
Lowered height 90mm
Overall length 1505mm
Fork dimensions 1070*142*60mm
Distance between fork arms movable 290~660mm
Turning radius 1415mm
Groung clearance 25mm
Battery 12V 110AH
