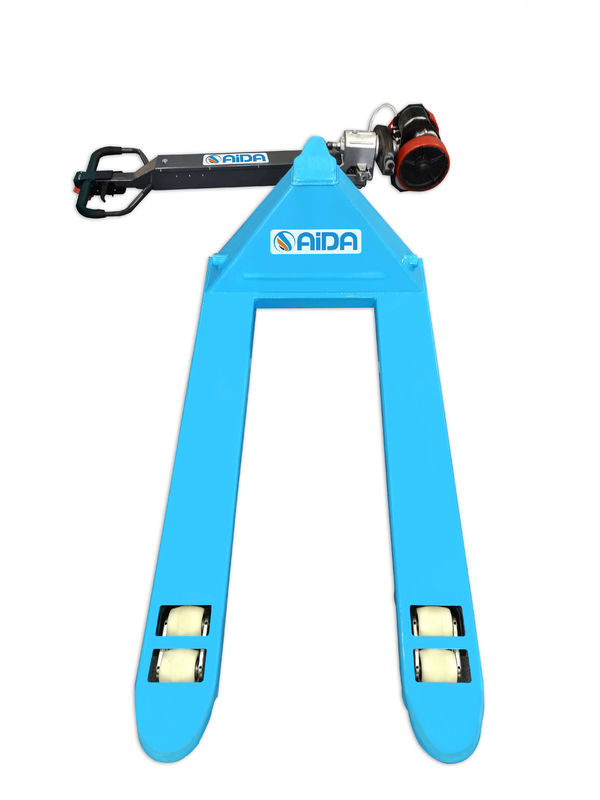

Anti Static Jack Pallet Truck Parts Self Propelled Manual 800W Drive Motor

AIDA  self-propelled electric handle is an affordable and eco-friendly way to energize your material transport needs. Turn your manual hand pallet trucks into electric powered pallet trucks with enhanced performance and handling.

Is manual pallet truck too tiring? Just take it apart , keep original fork frame, retrofit it by AIDA self-propelled electric handle in 5 seconds. Talk to us today to get started with an electrifying upgrade of your manual hand pallet trucks.


Technical Parameters

(1) Fast modification:circuit integration, easy and fast modification and installation
(2) Low cost: make best use of old manual pallet truck to keep original fork frame
(3) Wide application: no change of original fork frame size and structure,the handle compatible with 90% of existing hand pallet trucks
(4) Compact design: downsized electric pallet truck after retrofitting take up less place
(5) Easy maintenance: handle module easy for maintenance and replacement
(6) Customization available: custom-made connection section is available for modification of a mass of nonstandard hand pallet trucks.

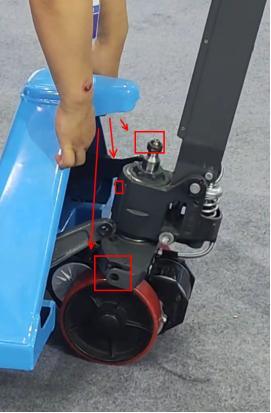

(1) Disassemble the the handle rod from fork frame of the old manual pallet truck, keep the original fork frame
      (fork distance both 550mm and 680mm versions are OK)

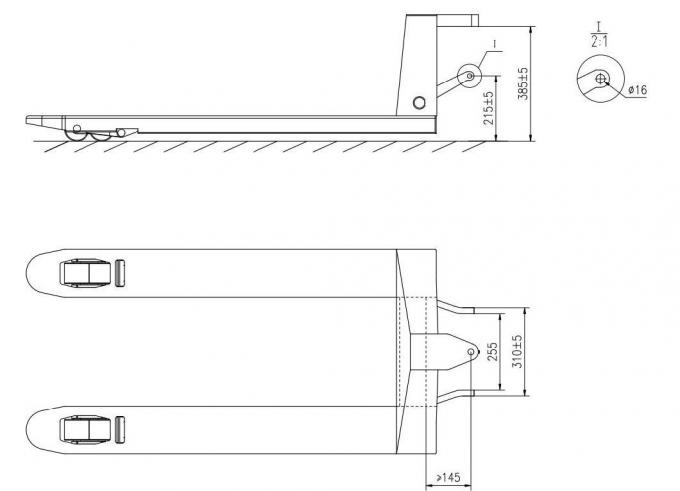

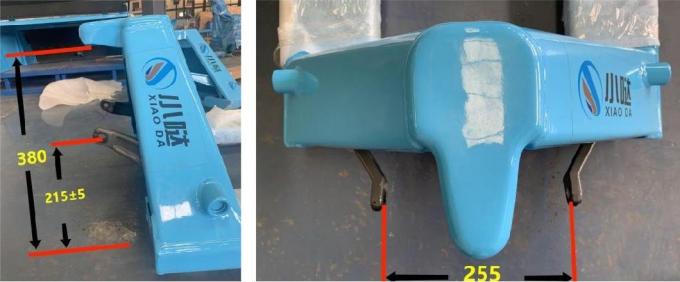

(2) Measure dimensions as below to make sure compatible with the power handle kit.



(3) Assemble the the power handle kit to the original fork frame
