Product Details
Place of Origin: China
Brand Name: AIDA
Certification: ISO,CE,EGS
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: pallet packing for export
Delivery Time: 5-20 work days as per order volume
Payment Terms: T/T,L/C
Supply Ability: 200 set/month
Model NO.: |
XD-6108 |
Load Center: |
>500mm |
Condition: |
New |
Drive Motor: |
850W |
Lift Motor: |
850W |
Overall Width: |
550/680mm |
Overall Length: |
1626mm |
Transport Package: |
1PCS In A Pallet |
Specification: |
180kg |
Trademark: |
AIDA |
Origin: |
China |
HS Code: |
84279000 |
Supply Ability: |
100 Units/Month |
Warranty: |
1 Years |
Cab Location: |
Walkie |
Type: |
Powered Pallet Truck |
Power: |
DC Motor |
Load Capacity: |
1T - 5T |
Fuel: |
Electric |
Customization: |
Available | Customized Request |
Model NO.: |
XD-6108 |
Load Center: |
>500mm |
Condition: |
New |
Drive Motor: |
850W |
Lift Motor: |
850W |
Overall Width: |
550/680mm |
Overall Length: |
1626mm |
Transport Package: |
1PCS In A Pallet |
Specification: |
180kg |
Trademark: |
AIDA |
Origin: |
China |
HS Code: |
84279000 |
Supply Ability: |
100 Units/Month |
Warranty: |
1 Years |
Cab Location: |
Walkie |
Type: |
Powered Pallet Truck |
Power: |
DC Motor |
Load Capacity: |
1T - 5T |
Fuel: |
Electric |
Customization: |
Available | Customized Request |

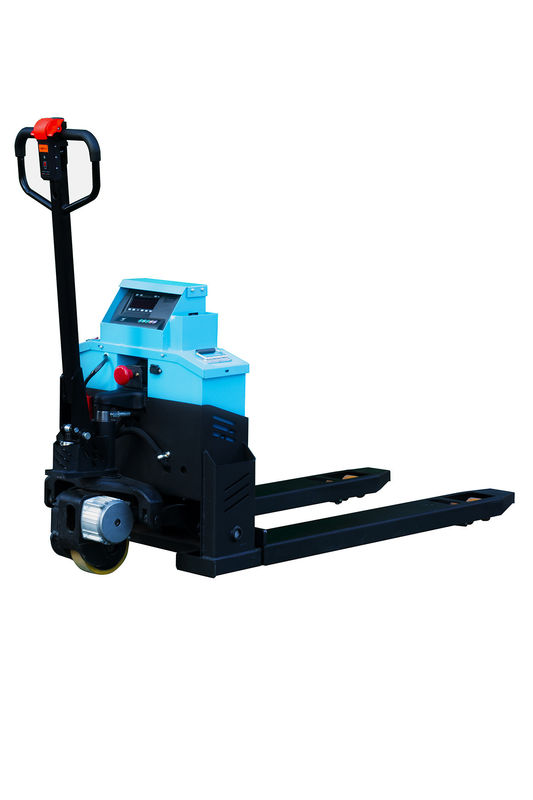

Loading Capacity 2 Ton Material Weighting Equipment electric pallet truck with Scale
The electric pallet truck with an integrated weighing scale, commonly referred to as an electric pallet jack with a built-in weighing system, is an essential material handling device used for the transportation and weighing of loads within warehouses or industrial settings. It combines the functionalities of an electric pallet jack, primarily designed for lifting and transporting pallets, with the convenience of an integrated weighing scale.

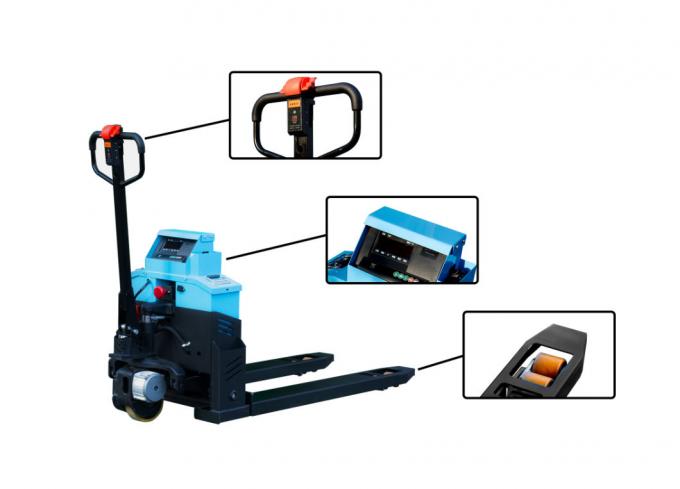

This electric pallet truck boasts a maximum load capacity of 2000kg. It offers electric lifting and lowering capabilities, as well as forward and backward movement. Its robust chassis ensures reliability, and the truck is equipped with various weighing functions. The high-definition display provides clear visibility, and its maintenance-friendly design simplifies upkeep. The ergonomics and smart tiller design enhance operator comfort, while a built-in rechargeable battery powers the truck.
In warehouses, distribution centers, wholesale operations, recycling plants, and various industrial settings, electric pallet trucks equipped with weighing scales are commonly utilized. These versatile devices facilitate accurate weight measurement of loads, effectively streamlining operations by integrating the tasks of lifting, transporting, and weighing into a single equipment. This integration saves operators valuable time and effort, contributing to increased operational efficiency.
Specification | Electric pallet truck with weighing scale | |
Electric pallet truck | Load capacity | 2000KG |
Load centre distance | 600mm | |
Self weight | 175KG(incl. battery and scale system) | |
Tyre type | solid PU | |
Lift height | 200mm | |
Ground clearance | 5mm | |
Overall length | 1710mm | |
Fork distance | 550 or 685mm | |
Turning radius | 1400mm | |
Travel speed (Laden/unladen) | 4.5/5 Km/h | |
Gradeability | 4% | |
Drive motor | 850W | |
Battery | 48V20Ah(lead-acid)/48V20(40)Ah(lithium) | |
Electronic weighing scale system |
Weighing capacity | 2000KG |
Function | Weigh, tare, Accumulation, zero setting | |
Accuracy | 500g (high precision can be customized) | |
Display | LCD high-definition backlit display | |
Unit | KG (kilogram, gram, pound) | |
Operating temperature | 0-40ºC |
