Product Details
Place of Origin: China
Brand Name: AIDA
Certification: ISO,CE,EGS
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: pallet packing for export
Delivery Time: 5-20 work days as per order volume
Payment Terms: T/T,L/C
Supply Ability: 200 set/month
Model NO.: |
XD-6108 |
Load Center: |
>500mm |
Condition: |
New |
Drive Motor: |
850W |
Lift Motor: |
850W |
Overall Width: |
550/680mm |
Overall Length: |
1626mm |
Transport Package: |
1PCS In A Pallet |
Specification: |
180kg |
Trademark: |
AIDA |
Origin: |
China |
HS Code: |
84279000 |
Supply Ability: |
100 Units/Month |
Warranty: |
1 Years |
Cab Location: |
Walkie |
Type: |
Powered Pallet Truck |
Power: |
DC Motor |
Load Capacity: |
1T - 5T |
Fuel: |
Electric |
Customization: |
Available | Customized Request |
Model NO.: |
XD-6108 |
Load Center: |
>500mm |
Condition: |
New |
Drive Motor: |
850W |
Lift Motor: |
850W |
Overall Width: |
550/680mm |
Overall Length: |
1626mm |
Transport Package: |
1PCS In A Pallet |
Specification: |
180kg |
Trademark: |
AIDA |
Origin: |
China |
HS Code: |
84279000 |
Supply Ability: |
100 Units/Month |
Warranty: |
1 Years |
Cab Location: |
Walkie |
Type: |
Powered Pallet Truck |
Power: |
DC Motor |
Load Capacity: |
1T - 5T |
Fuel: |
Electric |
Customization: |
Available | Customized Request |

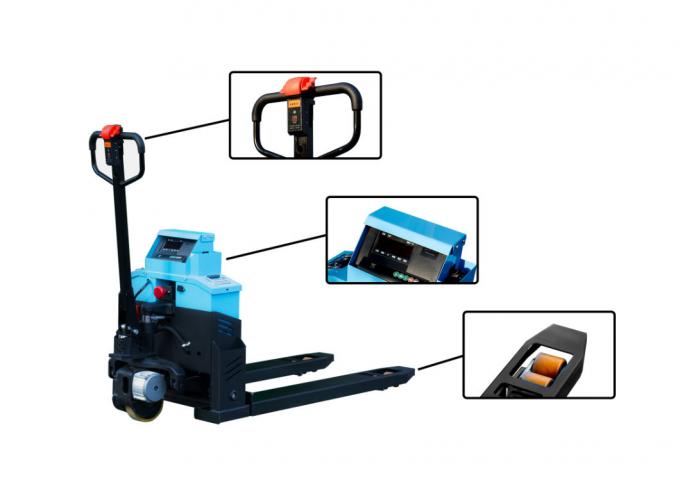

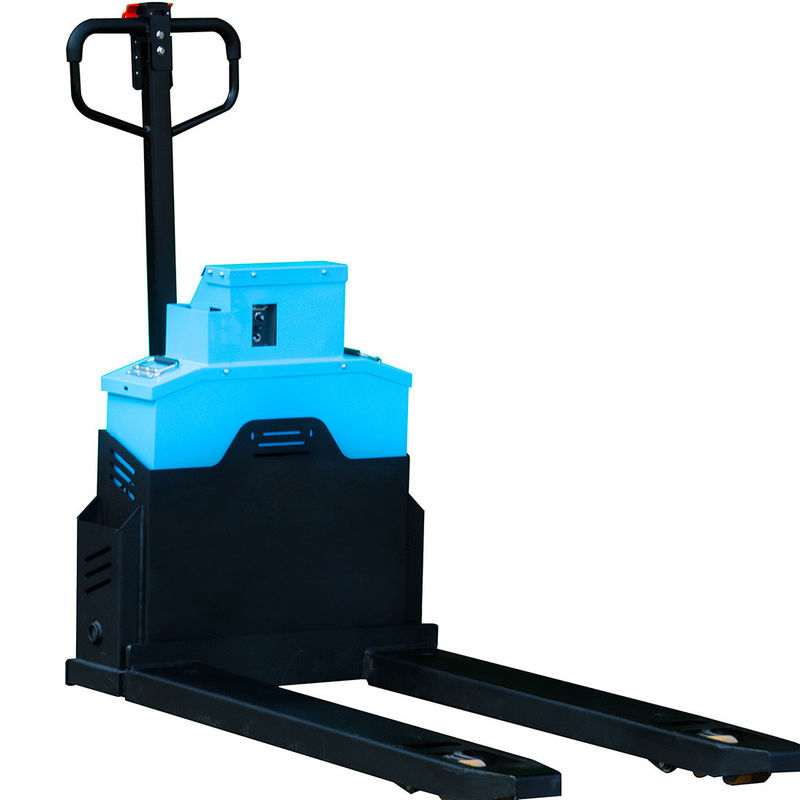

Loading Capacity 2 Ton Material Weighting Equipment electric pallet truck with Scale
The electric pallet truck with a weighing scale, also known as an electric pallet jack with a built-in weighing system, is a critical material handling device used to move and weigh loads within warehouses or industrial settings. It seamlessly integrates the functionalities of an electric pallet jack, primarily designed for lifting and transporting pallets, with an integrated weighing scale, providing enhanced efficiency and accuracy in load handling.
Load capacity up to 2000kg
Electric lifting/lowering and electric moving forward and moving backward.
Robust and reliable chassis
Multiple weighing functions
High definition display
Maintenance friendly
Ergonomics&smart tiller design
Build-in rechargeable battery
Electric pallet trucks with weighing scales find extensive usage in warehouses, distribution centers, wholesale facilities, recycling plants, and other industrial environments where accurate weight measurement of loads is necessary. These innovative devices consolidate the tasks of lifting, transporting, and weighing into a single equipment, effectively streamlining operations. By doing so, they minimize the time and effort required by operators, ultimately improving overall productivity.
| Specification | Electric pallet truck with weighing scale | |
| Electric pallet truck | Load capacity | 2000KG |
| Load centre distance | 600mm | |
| Self weight | 175KG(incl. battery and scale system) | |
| Tyre type | solid PU | |
| Lift height | 200mm | |
| Ground clearance | 5mm | |
| Overall length | 1710mm | |
| Fork distance | 550 or 685mm | |
| Turning radius | 1400mm | |
| Travel speed (Laden/unladen) | 4.5/5 Km/h | |
| Gradeability | 4% | |
| Drive motor | 850W | |
| Battery | 48V20Ah(lead-acid)/48V20(40)Ah(lithium) | |
| Electronic weighing scale system |
Weighing capacity | 2000KG |
| Function | Weigh, tare, Accumulation, zero setting | |
| Accuracy | 500g (high precision can be customized) | |
| Display | LCD high-definition backlit display | |
| Unit | KG (kilogram, gram, pound) | |
| Operating temperature | 0-40ºC | |
