Customized Manual Stacker Pallet Jack Hydraulic Pallet Stacker 800W

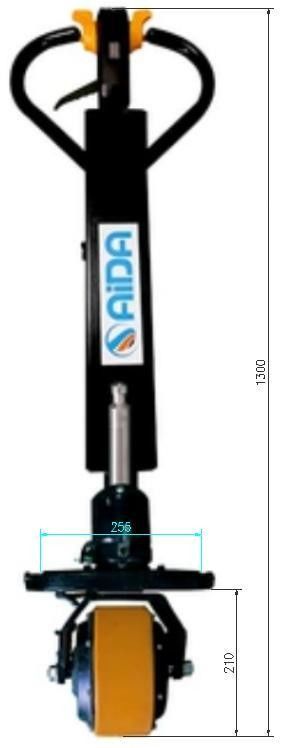

The power handle kit is a retrofit module that integrates a driving motor, wheel, accelerator, controller, cylinder, lithium battery, and harness assembly. It is designed to effortlessly convert an old manual pallet truck into an fully electric power pallet truck withinminutes, all at a low cost.

What are the advantages?


• Compact design with small size and light weight
• Lithium battery, large capacity, fast charging
• Multifunctional handle with turtle speed function and battery display
• Easy maintenance: module assembly easy for maintenance and replacement
• Installed with integrated power handle kit, can be disassemble for replacement and maintenance easily
• In-Wheel-Motor with high performance and adaptability for different kind and size of old pallet trucks
• Customization available: custom-made connection section is available for modification of special hand pallet trucks.

• Brand AIDA Unit Model XD-5301   Power Electric   Operation way Walkie electric moving and electric lifting/lowering   Load capacity 2000 kg load centre distance 600 mm Self weight 42 kg Max.ground clearance 200 mm speed,loaded/unladen 4.8/5.2 km/h Gradeability,loaded/unladen 3/7 % Motor 0.8 kW Battery Li-on 48V 15Ah V/Ah

• (1) Measure dimensions as below to make sure compatible with the Power handle kit
•
•
• (2)Disassemble the the manual handle rod from fork frame of the old manual pallet truck, keep the original fork frame
• (3) Assemble the the Power handle kit to the original fork frame
•
•
