In Motion Truck Scale OEM For Weighing Of Axle Trucks And Trailers

In motion truck scale static mode for weighing of axle trucks and trailers 100tons

Axle truck scales, also known as axle weighbridges or axle weighing systems, are specialized weighing systems designed to measure the weight of individual axles or groups of axles on a truck or other heavy vehicles. Unlike traditional truck scales that measure the total weight of the entire vehicle, axle truck scales provide separate weight readings for each axle to determine the weight distribution and ensure compliance with weight limits.


Technical Data


Product details :

It is a split weighing system for truck, it composed of split scales and a PDA;Is a brand new solution for vehicle weight management

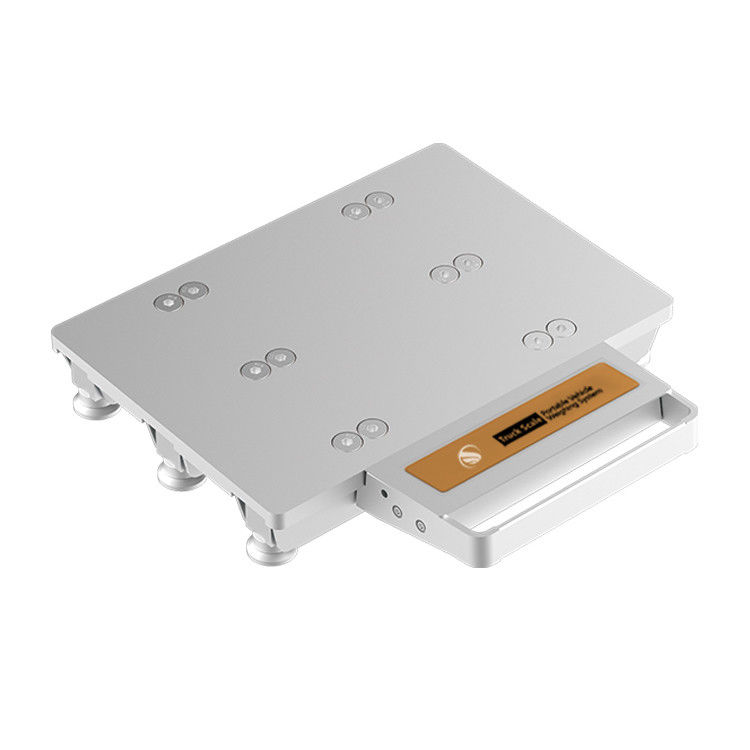

1. Split scales
Easy deploy on ground

Battery working time: 100 hours
Size 95cm*50cm*6cm

Weight 22.5kg
Precision: Keli load cell 0.2%
Wireless connection: bluetooth WIFI
Low ground clearance: 2cm

2. PDA device (personal digital assistant)
GPS
Camera
CPU 4 core
APP & Andriod system
Split weighing
Easy to operate
Overload warning
Eccentric load warning
Print function

Features:
Different truck scale combinations can be set up according to different truck types and axles of trucks and trailers

• Tandem-Axle Truck Scale: Tandem-axle trucks have two axles grouped closely together. For this configuration, multiple weighing pads or scales are placed under each axle to measure the weight of each axle separately. The weight readings from both axles are usually combined to determine the total weight of the truck.

• Tri-Axle Truck Scale: Tri-axle trucks have three axles, with the middle axle positioned farther back. In this setup, weighing pads or scales can be placed under each axle, similar to the tandem-axle setup, to obtain individual axle weights. The readings from all three axles are combined to calculate the total weight.

• Multi-Axle Truck Scale: For trucks with more than three axles, such as quad-axle or quint-axle configurations, additional weighing pads or scales are added under each axle for accurate weight measurement. The weight readings from all the axles are then summed up to determine the total weight of the truck.



Usage application
In this example , the truck is a six-axle dual-drive semi-trailer.There are 10 double wheels and 2 single wheels

FAQ

Q: what is truck scale in static mode?

A:

A truck scale in static mode refers to a weighing system that measures the weight of a truck or vehicle when it is stationary or at rest. In this mode of operation, the vehicle is driven onto the scale platform and brought to a complete stop before the weight measurement is taken.

Here are the key features and characteristics of a truck scale in static mode:

Scale Platform or pad: A truck scale in static mode consists of a sturdy platform that is designed to support the weight of the truck.
Load Cells: The scale platform incorporates load cells, which are sensors that measure the weight applied to them. These load cells are strategically placed under the platform to capture the weight of the vehicle.
Weighing Process: The weighing process in static mode involves the truck being driven onto the scale platform until it is properly positioned for weighing. The driver then brings the vehicle to a complete stop, and the weight measurement is taken. The scale display or indicator provides the weight reading once it stabilizes.
Accuracy and Precision: Truck scales in static mode are known for their high accuracy and precision in weight measurement. By requiring the vehicle to stop completely, potential motion-related errors are minimized, resulting in more accurate weight readings.
Legal Compliance: Static truck scales are commonly used in commercial applications and weigh stations to ensure compliance with legal weight limits imposed by regulatory authorities. They help identify overweight vehicles that may pose safety risks or cause damage to roads and infrastructure.
Data Recording and Management: Many truck scales in static mode are equipped with data recording and management capabilities. They can store weight measurements, vehicle information, and other relevant data for record-keeping, auditing, and enforcement purposes.
Truck scales in static mode are widely utilized in various industries, including transportation, logistics, agriculture, waste management, and mining, where accurate weight measurements of trucks and their cargo are crucial for operational and regulatory compliance.
