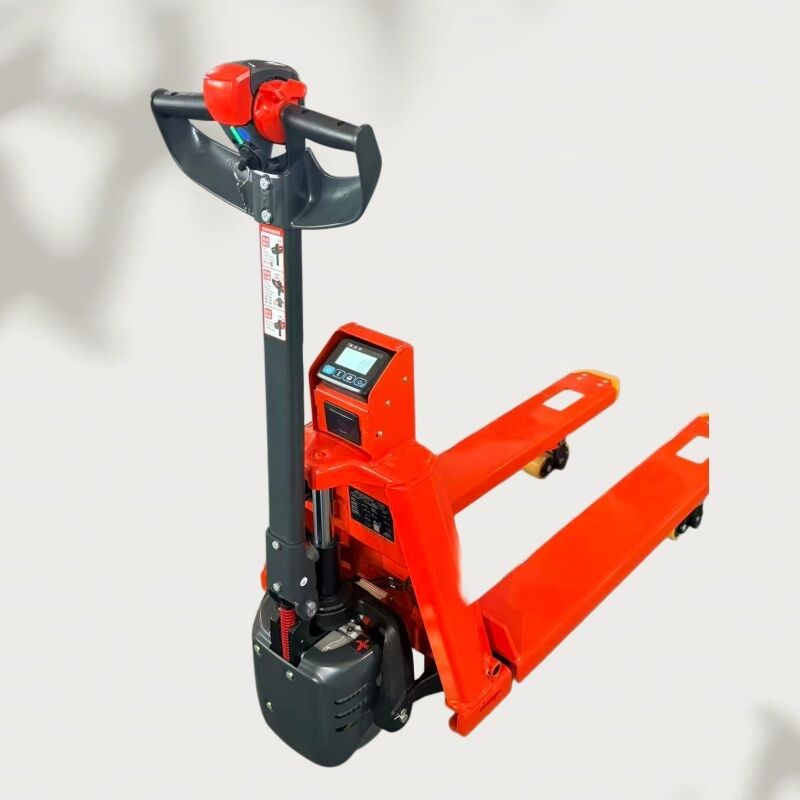

6158 Electric Weighing Pallet Jack 2.0 Ton Capacity Built-in Digital Scale Printer Module 701mm Fork IP67 Sensor

Electric Weighing Pallet Jack – 2000kg Capacity

The YANMING Electric Weighing Pallet Jack is a next-generation material handling solution that integrates a high-precision digital weighing system directly into the pallet truck chassis. Combining electric-powered pallet movement with built-in weighing capability, this pallet jack eliminates the need for separate floor scales, streamlining warehouse logistics, inventory management, and shipping verification in a single operation.

⚖️ Built-in Digital Weighing System

• Weighing Brand: – industrial-grade load cells with 200% load design redundancy
• Weighing Capacity: 1kg to 2000kg
• Display Accuracy: 0.5kg | Comprehensive Accuracy: 0.1%
• Display: 3-inch LCD screen, 21mm character height, LED white backlight, readable in all lighting conditions
• Functions: Tare/Zero, Accumulation, kg/lb Unit Switching, Calibration, Print (with optional printer)
• Durability Tested: 35,000+ continuous full-load weighing cycles with stable accuracy maintained
• Instrument Protection: IP54 rated | Sensor & Cable Protection: IP67 rated
• Operating Temperature: -10°C to 40°C, suitable for cold storage and ambient warehouses

🔧 Reinforced Chassis & Fork Design

• Fork Width: 701mm (outer) | Single Fork Width: 166mm
• Fork Lift Range: 88mm to 204mm
• Heavy-Gauge Steel Frame: Reinforced body with premium thickened steel for long-term dimensional stability under continuous load
• Impact Buffering Fork Design: Unique fork impact dampening technology reduces collision shock transferred to the weighing system, ensuring long-term accuracy

⚡ Electric Drive Performance

• Drive Type: Battery-powered electric traction and lift
• Maneuverability: Compact and agile, ideal for narrow aisles and confined warehouse spaces
• Climbing Capability: Strong gradeability for ramp operations and dock levelers
• Travel Speed: Fast travel speed for efficient point-to-point material transport

🖨️ Embedded Thermal Printer

• Printer Type: 57mm Embedded Micro Thermal Printer
• Installation Size: 77mm (W) * 57mm (H), Embedding Depth: 40mm
• Consumable: 57*30mm Thermal Paper
• Function: Print current weighing results on demand for documentation and traceability
• Note: Printer is optional and can be retrofitted; panel supports 1-6mm thickness variation

📦 Application Scenarios

• Inbound Receiving: Weigh incoming shipments directly on the pallet during unloading
• Inventory Counting: Verify pallet weights during stock audits without moving to a floor scale
• Order Picking & Shipping: Confirm outbound pallet weight against shipping manifests in real time
• Cold Storage: IP67 protected sensors operate reliably in -10°C environments
• Production Line: Weigh work-in-progress pallets between manufacturing stages

⚠️ Important Note

This weighing pallet truck is designed for internal logistics and inventory management purposes. It is not a legal measuring instrument and should not be used for trade settlement or commercial transactions requiring certified scales.

Contact YANMING today to discuss your specific application requirements and request a customized quotation.
