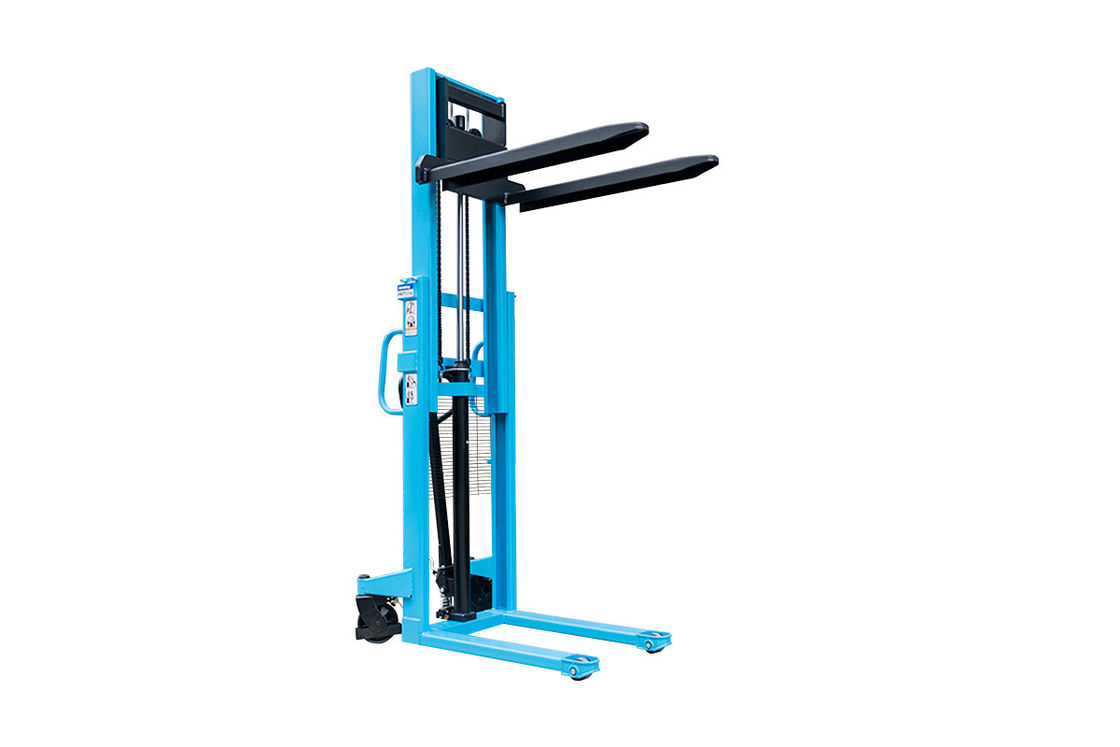

Electric Walkie Manual Pallet Stacker Load 1 ton 1.6meter Hight

Product Details

Place of Origin: China

Brand Name: AIDA

Certification: ISO,CE,EGS

Model Number: WDG10S

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: pallet packing for export

Delivery Time: 5-20 work days as per order volume

Payment Terms: T/T,L/C

Supply Ability: 200 set/month

Get Best Price
Highlight:

Manual Pallet Stacker 1 Ton

,

Walkie Manual Pallet Stacker

,

Manual Electric Stacker 1.6meter

Load Capacity:
1000kg
Lift Height:
1600mm
Operation Type:
Walkie
Material:
Re-inforced Steel
Moving Way:
Hydraulic Moving And Lifting
Battery:
None
Size:
1400*700*2086mm
Weight:
250kg
Load Capacity:
1000kg
Lift Height:
1600mm
Operation Type:
Walkie
Material:
Re-inforced Steel
Moving Way:
Hydraulic Moving And Lifting
Battery:
None
Size:
1400*700*2086mm
Weight:
250kg
Electric Walkie Manual Pallet Stacker Load 1 ton 1.6meter Hight

Hand manual pallet stacker load 1ton lift 1.6meter 2meter 3meter



Features

1) Steering wheel protection and safety cover make the operator at ease;
2) Gantry is made of high-quality steel, with good rigidity and high strength;
3) The body structure is dexterous and light, the turning radius is small, and the operation is comfortable;
4) The lifting function of manual and foot-moving can replace the operation, which makes the operation less fatigued and greatly improves the work efficiency.

Application



Warehouses: Manual pallet stackers are widely used in warehouses for various tasks, such as loading and unloading trucks, moving pallets to storage racks, and rearranging inventory on the shop floor. They are particularly useful in narrow or confined spaces where larger equipment cannot maneuver easily.

Retail stores: Manual pallet stackers are used in retail environments to handle incoming shipments, organize stockrooms, and move products to the sales floor. They are especially handy for smaller retail spaces that may not have enough room for larger forklifts.

Manufacturing facilities: Manual pallet stackers are employed in manufacturing plants to transport raw materials, components, and finished products between different workstations or assembly lines. They are useful for lifting loads to ergonomic heights, allowing workers to access materials and perform tasks comfortably.

Distribution centers: Manual pallet stackers play a crucial role in distribution centers by assisting with order picking, loading and unloading trucks, and rearranging palletized goods to optimize storage space. They offer a cost-effective solution for handling lighter loads and performing tasks with precision.

Small businesses: Manual pallet stackers are often used by small businesses or operations with limited budgets that don't require the constant use of powered forklifts. They provide a versatile and affordable option for occasional or light-duty lifting and stacking needs.





Technical parametes


Model WDG10S
Load capacity 1000kg
Tyre size, front φ80×70mm
Tyre size, rear φ180×50mm
Lift height 1600/2500/3000mm
Lowered height 90mm
Overall length 1360mm
Fork dimensions 1070×142×60mm
Distance between fork arms fixed fork 550/680mm
Turning radius 1200mm
Groung clearance 25mm
