Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Portable Manual Pallet Stacker, Small Manual Pallet Stacker, 2000kg Manual Pallet Stacker


Model NO.:	WDG15S	Fuel:	No
Load Center:	500mm	Lift Height:	1600-3000mm
Condition:	New	Max Lift Height:	1600/2500/3000mm
Turning Radius:	1200mm	Groung Clearance:	25mm
Transport Package:	6PCS In One Pallet	Specification:	1360*740mm
Trademark:	AIDA	Origin:	China
HS Code:	84279000	Supply Ability:	600 Units/Month
After-sales Service:	Support	Warranty:	1 Year
Cab Location:	Adjustable	Type:	Stacker
Load Capacity:	1T - 5T	Customization:	Available \| Customized Request

Model NO.:	WDG15S
Fuel:	No
Load Center:	500mm
Lift Height:	1600-3000mm
Condition:	New
Max Lift Height:	1600/2500/3000mm
Turning Radius:	1200mm
Groung Clearance:	25mm
Transport Package:	6PCS In One Pallet
Specification:	1360*740mm
Trademark:	AIDA
Origin:	China
HS Code:	84279000
Supply Ability:	600 Units/Month
After-sales Service:	Support
Warranty:	1 Year
Cab Location:	Adjustable
Type:	Stacker
Load Capacity:	1T - 5T
Customization:	Available \| Customized Request

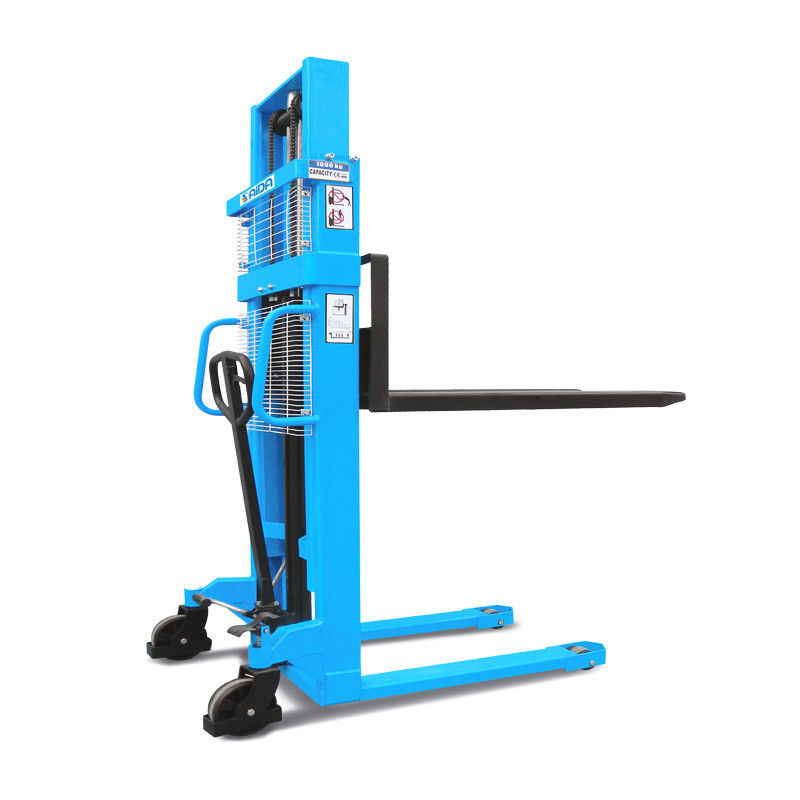

Small Manual Hydraulic Portable Pallet Lifter Stacker With 2000kg Capacity

Vertical Manual Stacker Pallet Jack , Manual Hydraulic Pallet Stacker 3000kg

1) Steering wheel protection and safety cover make the operator at ease;
2) Gantry is made of high-quality steel, with good rigidity and high strength;
3) The body structure is dexterous and light, the turning radius is small, and the operation is comfortable;
4) The lifting function of manual and foot-moving can replace the operation, which makes the operation less fatigued and greatly improves the work efficiency.

Specification

Model	WDG15S
Load capacity	1500kg
Tyre size, front	φ80×70mm
Tyre size, rear	φ180×50mm
Lift height	1600/2500/3000mm
Lowered height	90mm
Overall length	1360mm
Fork dimensions	1070×142×60mm
Distance between fork arms	fixed fork 550/680mm
Turning radius	1200mm
Groung clearance	25mm
