Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Manual Pallet Stacker  500kg, Lifter Manual Pallet Stacker, Hand Hydraulic Stacker 500kg


Model NO.:	WDG10S	Fuel:	No
Load Center:	500mm	Lift Height:	1600-3000mm
Condition:	New	Turning Radius:	1200mm
Groung Clearance:	25mm	Max Lift Height:	1600/2500/3000mm
Transport Package:	6PCS In One Pallet	Specification:	1360*740mm
Trademark:	AIDA	Origin:	China
HS Code:	84279000	Supply Ability:	600 Units/Month
After-sales Service:	Support	Warranty:	1 Year
Cab Location:	Adjustable	Type:	Stacker
Power:	No	Load Capacity:	1T - 5T
Customization:	Available \| Customized Request

Model NO.:	WDG10S
Fuel:	No
Load Center:	500mm
Lift Height:	1600-3000mm
Condition:	New
Turning Radius:	1200mm
Groung Clearance:	25mm
Max Lift Height:	1600/2500/3000mm
Transport Package:	6PCS In One Pallet
Specification:	1360*740mm
Trademark:	AIDA
Origin:	China
HS Code:	84279000
Supply Ability:	600 Units/Month
After-sales Service:	Support
Warranty:	1 Year
Cab Location:	Adjustable
Type:	Stacker
Power:	No
Load Capacity:	1T - 5T
Customization:	Available \| Customized Request

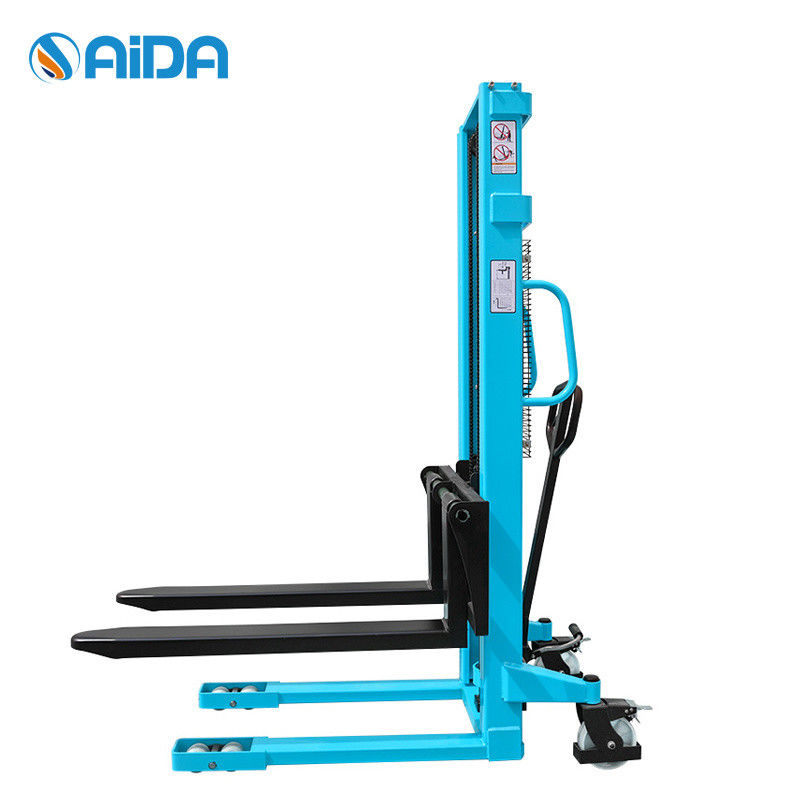

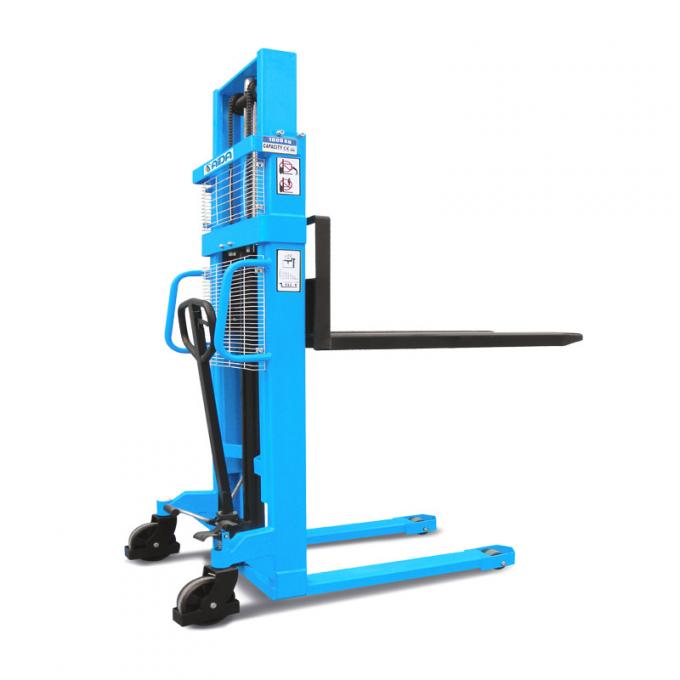

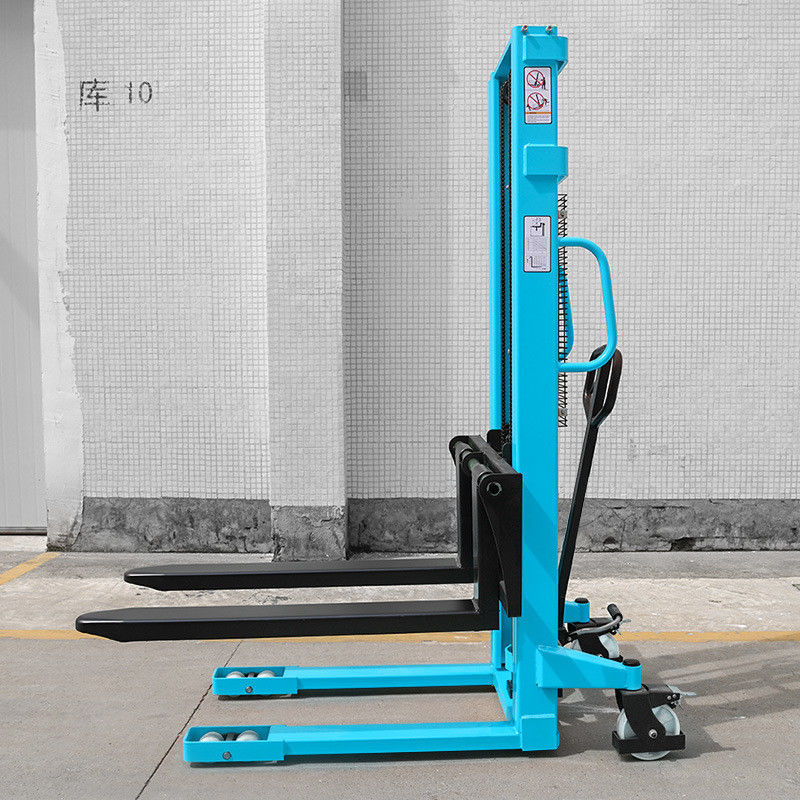

Lifter Hand Manual Pallet Stacker 500kg Hydraulic Steering Wheel Protection

Lifter Hand Manual Pallet Stacker 500kg Hydraulic Steering Wheel Protection

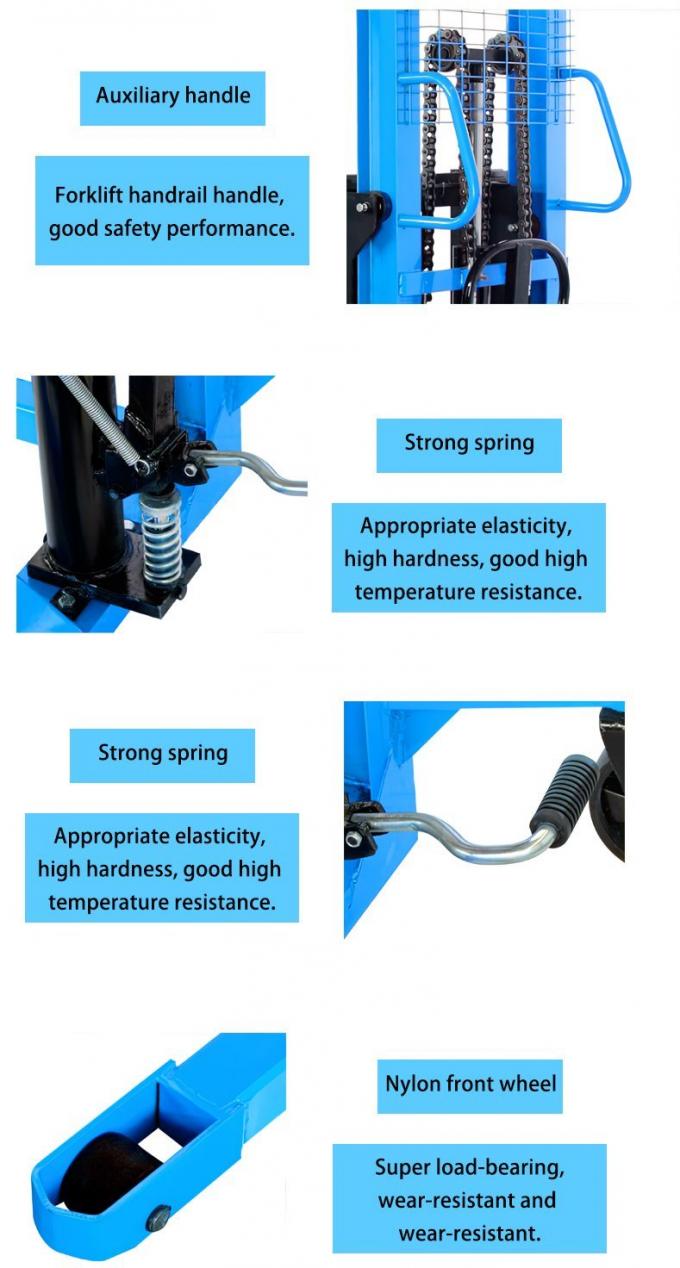

1) Steering wheel protection and safety cover make the operator at ease;
2) Gantry is made of high-quality steel, with good rigidity and high strength;
3) The body structure is dexterous and light, the turning radius is small, and the operation is comfortable;
4) The lifting function of manual and foot-moving can replace the operation, which makes the operation less fatigued and greatly improves the work efficiency.

Model	WDG10S
Load capacity	1000kg
Tyre size, front	φ80×70mm
Tyre size, rear	φ180×50mm
Lift height	1600/2500/3000mm
Lowered height	90mm
Overall length	1360mm
Fork dimensions	1070×142×60mm
Distance between fork arms	fixed fork 550/680mm
Turning radius	1200mm
Groung clearance	25mm
