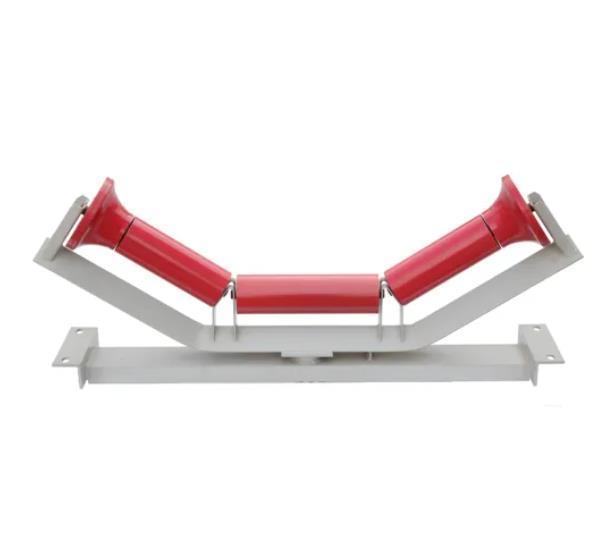

Red Troughing Conveyor Idler Set - Heavy-Duty Mining Conveyor Roller

​

I. Structural characteristics

1. Adjustment through friction:

The idler angle can be adjusted automatically through friction.

2. Strong adjustability:

It can automatically adjust the angle of the idler according to the running condition of the conveyor belt to maintain the stable operation of the conveyor belt.

II. Performance characteristics

1. Automatic centering function:

When the conveyor belt deviates, the friction wheel will automatically adjust the angle of the idler under the action of friction to make the conveyor belt return to the center position, effectively preventing the conveyor belt from deviating.

2. Reduce wear:

By adjusting the idler angle in time, the friction between the conveyor belt and the idler is reduced, and the wear of the conveyor belt and the idler is reduced, prolonging the service life of the equipment.

3. Stable operation:

Ensure that the conveyor belt remains stable during operation, reducing material spillage and equipment vibration, and improving conveying efficiency and safety.

4. Strong adaptability:

It can adapt to different belt widths, different conveying speeds and different material conveying requirements.

III. Characteristics of application scope

1. Widely used:

In various belt conveyor systems, especially suitable for long-distance and large-capacity conveying occasions.

2. Advantages in complex terrain:

For occasions with complex terrain and where the conveyor belt is prone to deviation, the friction upper-aligning idler set has significant advantages.

IV. Maintenance characteristics

1. Simple maintenance:

The structure is relatively simple. Daily maintenance mainly includes checking the wear of the friction wheel and whether the idler rotates flexibly. The maintenance workload is small.

2. High reliability:

Due to its automatic centering function and stable performance, the probability of equipment failure is reduced and the reliability of the system is improved.

1. Roller/idler introduction:

Our company specializes in R&D, developing and manufacturing of belt conveyors as well as various types of idlers/rollers, pulleys and roller brackets.

Rollers/idlers are important components of belt conveyors. Their function is to effectively support the conveyor belt and the materials carried on the conveyor belt, ensuring the normal operation of the conveyor. The diameters of idlers have domestic standards and foreign standards.

Domestic standards: Φ63,Φ76,Φ89,Φ108,Φ133,Φ159,Φ194,Φ219;

Foreign standards: Φ 89,Φ102,Φ114,Φ 127,Φ 139,Φ152,Φ 165,Φ 178 and other specifications.

2. Our available rollers/idlers:

Carrier roller/bearing roller/carrying roller/spiral roller/friction roller/impact roller/rubber impact roller/buffer idler/trough roller/grooved roller/troughing roller set/comb roller/return roller/self-aligning roller/self-cleaning roller/carrier self-aligning roller/return self-aligning roller/edge roller/friction roller/carrier friction roller/return friction roller/roller set/roller bracket/impact roller set/carrier taper self-aligning roller/return taper self-aligning roller/parallel roller/Belt Conveyor Roller /Conveyor Idler/troughing idler

3. Roller/idler material specification:

Shaft:

45# STEEL. Cold-drawn steel S235JRG2 (EN10027-1); ST37 (DIN17100); E24 (AFNOR NFA 35501).

Tube:

Q235. DIN2394 standard, the material is ST37 conforming to DIN 17100 standard.

Bearing housing:

Cold stamping processing conforms to ISO M7 precision, cold rolling and calibration. The raw material conforms to DIN1623-1624 standard.

Inner sealing ring:

NYLON6 (ISO Pa6).

Bearing:

Deep groove ball bearing (clearance class C3) of DIN 6263 series. Labyrinth seal: 3-groove type, material ISO PA6 (nylon 6).

Cover:

Cold impacted by deep-drawn steel EU 10111-DD13.

Outer sealing ring:

Rubber sliding V-ring, wear-resistant, low-friction, ozone-resistant NBR nitrile butadiene rubber.

Protective cover:

Mechanical protective bushing to prevent stone impacts. The material is POM polymer or anti-corrosive zinc, aluminum, and copper alloys. Lubricating grease: Water-proof and dust-proof NLGI grade 2 or 3 lithium-based grease is used during assembly for long-term lubrication.

Roller protection:

Various types of painting, plastic spraying, galvanizing, and anti-rust tectyl oil.
