12kg 6-Axis Payload Industrial Robot Welding Automation Equipment

Name: 12kg 6-Axis Payload Industrial Robot Welding Automation Equipment
Brand: AIDA FORKLIFT EQUIPMENT CO., LTD.
SKU: ZGRB-06-2000-010-W-MK
Availability: InStock

Product Details

Place of Origin: China

Brand Name: AIDA

Certification: ISO,CE,EGS

Model Number: ZGRB-06-2000-010-W-MK

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: pallet packing for export

Delivery Time: 5-20 work days as per order volume

Payment Terms: T/T,L/C

Supply Ability: 200 set/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Welding Automation Equipment industrial robot, 12kg industrial robot, 6-Axis payload industrial robot


Model NO.:	Automatic	Application:	Metal Fabrication Industry，Automotive Industry
Function:	Welding Frame	Structure:	ARC Welding Robot
Transport Package:	Wooden Case Package	Trademark:	AIDA
Origin:	China	Warranty:	Support
After-sales Service:	Support	Customization:	Available
Control Mode:	Point To Point Control

Model NO.:	Automatic
Application:	Metal Fabrication Industry，Automotive Industry
Function:	Welding Frame
Structure:	ARC Welding Robot
Transport Package:	Wooden Case Package
Trademark:	AIDA
Origin:	China
Warranty:	Support
After-sales Service:	Support
Customization:	Available
Control Mode:	Point To Point Control

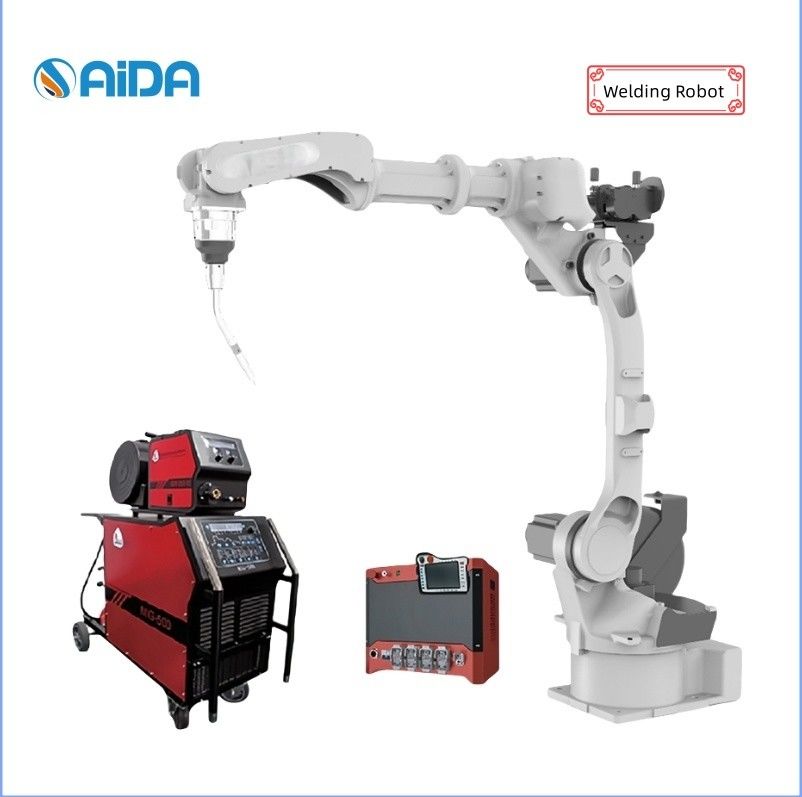

12kg 6-Axis Payload Industrial Robot Welding Automation Equipment

6-Axis Arc Welding Arm Payload 10kg Range 2000mm Welding Robot
The 6-axis arc welding robot is a type of industrial robot specifically designed for arc welding applications. Arc welding is a welding process that uses an electric arc to create a fusion of metals. These robots are equipped with a 6-axis articulated arm that provides flexibility and precision in maneuvering the welding torch to perform welding tasks.

The six axes of motion in a 6-axis arc welding robot allow for a wide range of movement and positioning capabilities, enabling the robot to reach different points within its work envelope and adjust its orientation as needed. This flexibility is crucial in arc welding applications where welding may need to be performed on complex geometries or in hard-to-reach areas.

Robotic welding is a highly advanced version of automated welding, in which machines conduct the welding, but welders still control and supervise the process. The use of robotic technology allows for precise and quick results, less waste, and greater safety.

12kg 6-Axis Payload Industrial Robot Welding Automation Equipment 0

Product Description

12kg 6-Axis Payload Industrial Robot Welding Automation Equipment 1

12kg 6-Axis Payload Industrial Robot Welding Automation Equipment 2

12kg 6-Axis Payload Industrial Robot Welding Automation Equipment 3

Product Specification

Model	ZGRB-06-2000-012-W-MK
Performance	Installation method	Ground, hoisting, wall
	Freedom of movement	6-axis
	Payload	12 kg
	Maximum reach	2000 mm
	Repeat positioning accuracy	0.05 mm
	Self weight	313kg
	Temperature	0-45°C
	Humidity	20%-80%
	Power capacity	4.5 KVA
Max. Working Range Swivel	J1	± 160º
	J2	-55º ~ +170º
	J3	-75º ~ +145º
	J4	± 190º
	J5	± 130º
	J6	± 220º
Max. Speed	J1	179º/s
	J2	179º/s
	J3	162º/s
	J4	315º/s
	J5	276º/s
	J6	1356º/s
Allowable Moment Bending	J4	103.5Nm
	J5	51.84Nm
	J6	32.64Nm

Product Specification

It is widely used in Automotive Industry, Aerospace Industry, Railway Industry, Metal Fabrication,Shipbuilding,
Construction,Oil and Gas Industry,Heavy Machinery Manufacturing, etc.
